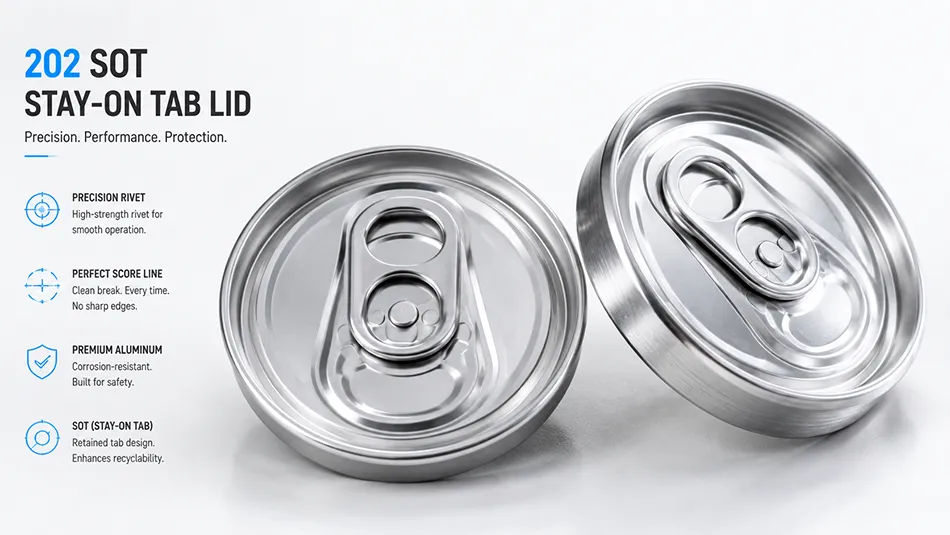

A filling plant needs 202 SOT lids with consistent score line depth because the score is the controlled weak point that makes the can open cleanly without becoming a leakage path during filling, seaming, pasteurization, distribution, or warm storage. If the score residual is too thin, the lid may be vulnerable to leakage, panel damage, or premature fracture. If it is too thick, the consumer may face high opening force, incomplete opening, tab failure, or quality complaints.

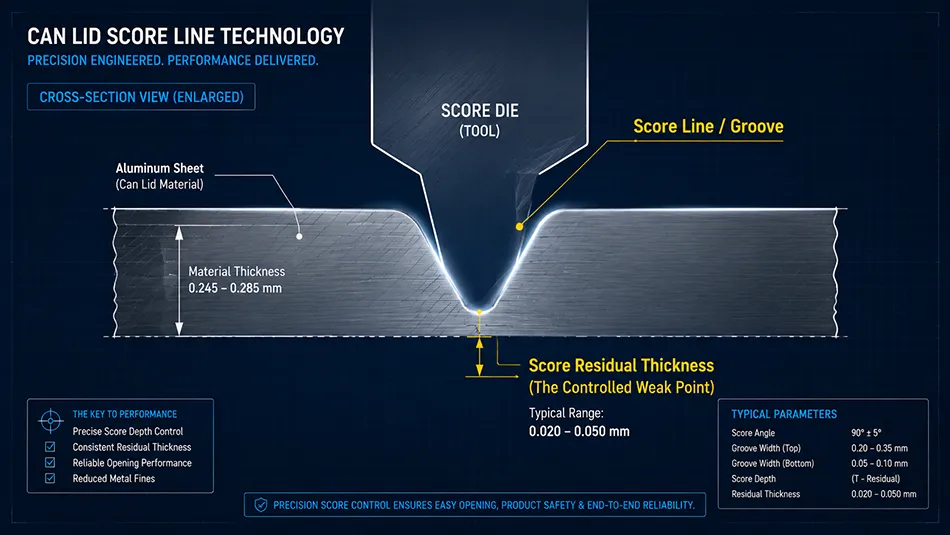

Score depth is easy to underestimate because the consumer sees only the pull tab. The real engineering question is score residual: how much metal remains under the scored opening line after the end is formed. Score residual gauges from specialists such as Sencon and Industrial Physics exist because the score line is a measurable release feature, not a cosmetic groove. For a 202 SOT end on a beverage line, that measurement connects openability, leakage, and consumer experience.
A good SOT score line is not as deep as possible; it is as consistent as necessary for safe opening and safe distribution.
Stay-on-tab lids rely on a scored panel that breaks when the tab applies force. The score must guide the opening path while leaving enough residual metal to maintain package integrity before the consumer opens the can. This is a trade-off. A deeper score can reduce opening force, but it also reduces residual metal. A shallower score can strengthen the panel, but it can make opening difficult or inconsistent.
That trade-off becomes serious on high-speed filling lines. Ends are fed, placed, seamed, washed, pasteurized or warmed in some processes, packed, palletized, and shipped. The score area must pass through all of that before the consumer pulls the tab. A score that looks fine on a flat drawing may fail if production variation, transport dents, internal pressure, or coating weakness combine at the scored region.
For procurement teams, the important phrase is "consistent score residual," not just "easy-open lid." Easy open describes the consumer promise. Score residual describes the control point that makes the promise safe.
The 202 end is one of the most common beverage-can end families. It is frequently paired with standard beverage bodies, including the kind of 500ml format listed on Baixi Cans' 500ml aluminum can specification page. Because the format is familiar, buyers sometimes treat the lid as a commodity. That is a mistake. A 202 SOT lid still has controlled features: end diameter, curl geometry, score residual, tab rivet, tab strength, compound, coating, and carton traceability.
On the filling line, those features interact with the lid feeder, seamer chuck, roll profile, can flange, fill pressure, product temperature, and line speed. A good lid in the wrong setup can become a seam or openability issue. A good setup with inconsistent score residual can become a consumer complaint or leakage risk. The 202 label tells you the end family; it does not prove the release window.
Baixi Cans' aluminum can lids collection includes 200, 202, and 206 options plus SOT and RPT styles. For a filling plant, that range is useful only if the lid selected for the SKU is matched to the can body, seamer, and product pressure before mass production.
Score-depth drift creates two different failure families. If the score residual is too thin, the end may be vulnerable to leakage, panel fracture, damage around the score, or failure during pressure and handling. If the residual is too thick, the consumer may need excessive opening force, the tab may deform, the panel may not open fully, or the opening path may feel rough. Both outcomes are quality failures, but they point in opposite process directions.
This is why a plant cannot fix all lid complaints with one adjustment. Increasing opening ease may increase leakage vulnerability if the problem is actually score residual. Reducing leakage concern may increase opening complaints if the score becomes too shallow. The correct response is to measure the score residual and connect the result to tab performance, leak evidence, and lot identity.
An illustrative scenario shows why consistency matters more than the average. Suppose a lid lot has an average score residual inside the target window, but one production section trends thinner. The average report looks acceptable, while the thin section may create leakage complaints under warm pressure. A filling plant needs range and distribution evidence, not only a single average value.

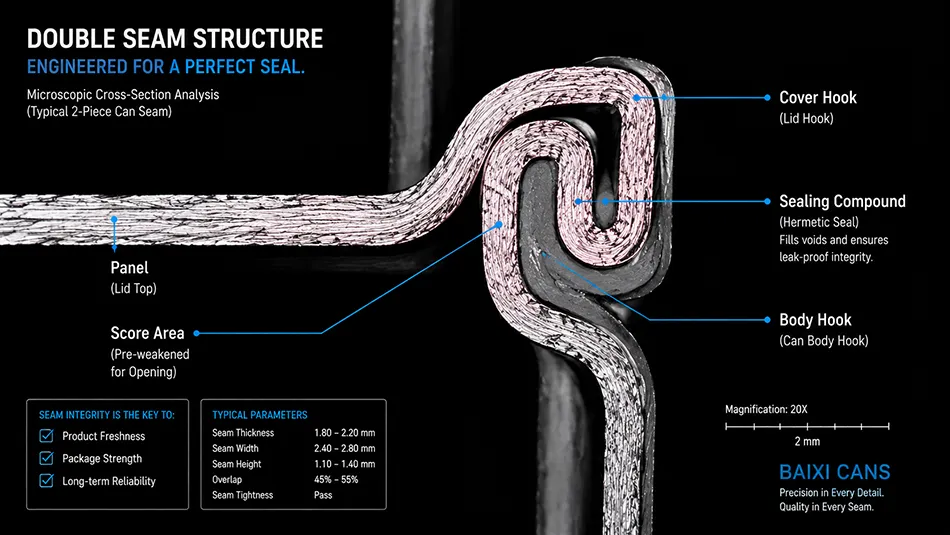

The score line controls opening; the double seam controls closure. Leakage prevention needs both.
Some line teams treat lid problems and seam problems as separate worlds. In a filled can, they meet. The end panel, score, curl, and compound arrive at the seamer as one component. The double seam then locks the end to the body. The AFDO can defect guide and CFIA metal can defect guidance show why closure defects are taken seriously in can integrity work. A perfect score cannot compensate for a bad seam, and a perfect seam cannot fully protect an end with a weak score area.

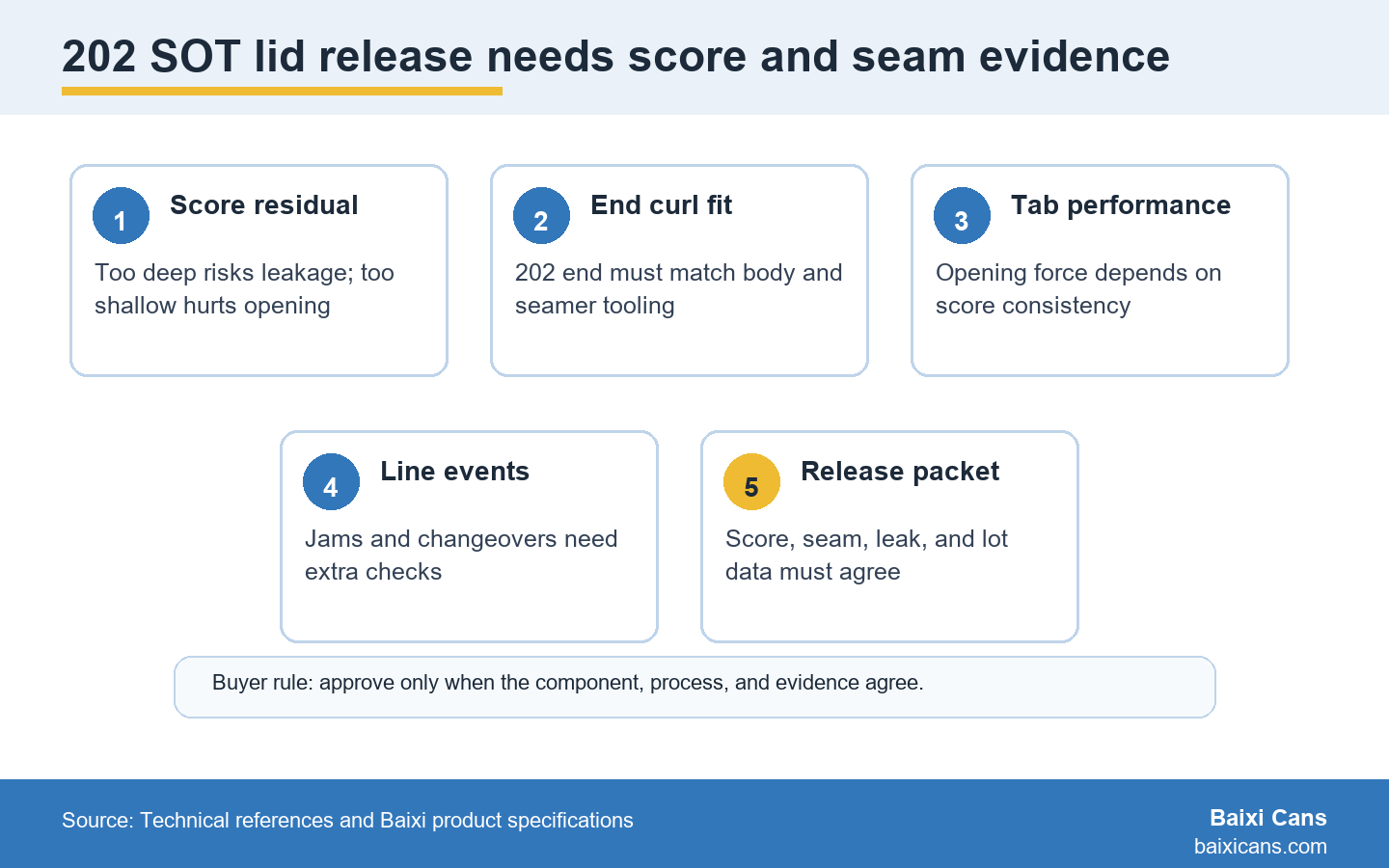

For a 202 SOT lid, the practical release package should include both end evidence and seam evidence. End evidence covers score residual, coating, tab and rivet, curl condition, and lot identity. Seam evidence covers seam width, thickness, body hook, cover hook, overlap, tightness, visual defects, and leak or pressure checks when required. The two records should refer to the same production lot.
Routine inspection may be enough for stable, repeated production with established suppliers and low-risk products. Extra checks are justified when the plant changes end supplier, changes lid type, runs a new can body, starts after a long stop, runs high-carbonation products, uses tunnel pasteurization, receives a complaint about opening force, or sees a lid-feed disturbance. These are the moments when a small score or end variation can become visible in production.
Plants should also increase checks when the product has higher internal pressure or more aggressive chemistry. A carbonated beer, soda, energy drink, or warm-chain beverage puts more stress on the end. If the score residual is at the edge of tolerance, that stress can decide whether the package remains stable through distribution.
| Trigger | Extra evidence to collect | Release decision |
|---|---|---|
| New 202 SOT lid lot | Score residual range, tab function, curl condition. | Approve only after first-run seam and opening checks. |
| Format changeover | Body-end match, seamer setup, first-article teardown. | Restart evidence instead of inheriting the previous run. |
| High pressure product | Pressure or leak test plus score residual distribution. | Confirm margin for warm handling and shipment. |
| Opening complaint | Opening force, tab deformation, score residual by lot. | Separate consumer-use failure from line damage. |
| Lid feed jam | Gross defect check, seam teardown, affected time window. | Quarantine the window until evidence agrees. |
The table gives the plant a way to convert score depth into operational release criteria. Without it, a score issue may be found only after the market complains.
Score residual sampling should be designed around how lid variation can actually appear. A random end from the top of one sleeve is not enough evidence for a full production run. The plant should sample across lid sleeves, pallets, production time, and after any lid-feed interruption. If the filler has a history of opening complaints, the plant should also record the lid lot and can lot on the same line as the opening-force or consumer-complaint record.
A practical sampling plan has three levels. The incoming level checks whether the lid lot matches the purchase specification and release certificate. The startup level checks whether the end runs properly through the feeder, seamer, washer, and first packed cases. The in-process level checks whether residual, opening, and seam evidence remain stable after the line reaches commercial speed. If all three levels agree, the plant has a defensible release. If one level drifts, the plant knows where to investigate.
The plant should avoid overreacting to one isolated measurement unless it is outside a critical limit or tied to visible damage. Score residual measurements can have instrument, operator, and location variation. The useful question is whether the readings form a stable pattern inside the approved window. A one-off reading asks for confirmation. A trend asks for action.
Consumer complaints about hard opening, broken tabs, rough pour openings, or incomplete panel fracture should not be handled only by customer service. They should be linked back to score residual, tab strength, rivet condition, lid lot, can lot, filling date, and storage route. Without that link, the plant may replace lids or adjust suppliers without proving the actual cause.
Opening force problems can come from score residual, tab geometry, rivet formation, panel stiffness, dents, storage temperature, or the way the consumer pulls the tab. The investigation should therefore compare unused lids, filled retained samples, and complaint samples when available. If unused lids test normal but complaint samples show panel distortion, handling may be involved. If both unused and complaint samples show shallow score residual, lid manufacture becomes a stronger suspect.
This traceability is especially important for export orders because complaints may arrive weeks after filling. By then, the line has moved on and the lid lot may be consumed. Retained lids and retained filled samples are the practical bridge between the consumer issue and the plant evidence.
A buyer does not need to dictate the supplier's proprietary score target, but the buyer should require that a controlled target exists and is verified. The RFQ should state 202 SOT end, can body format, product type, carbonation or pressure condition, filling-line model if known, thermal process, destination route, and any opening-force requirement. The PO or quality agreement should request score residual control, end lot traceability, coating compatibility, and evidence of conformance.
For a first order, the buyer should ask the filling partner whether the selected 202 SOT end has already run on the line. If not, reserve sample cans and ends for a trial. The trial should measure opening, seaming, leak performance, and handling. Approving printed cans before the end is proven on the line can turn a small lid issue into a large inventory problem.
Baixi Cans is relevant because it supplies aluminum can lids and matching beverage can formats. The useful buyer question is not only "Can you supply 202 SOT lids?" It is "Can the 202 SOT lid, can body, product pressure, and filling line be specified as one package?" According to company materials, Baixi Industry offers multiple lid diameters and styles, plus aluminum cans for beer, soda, energy drinks, and other beverages.
If the project uses 202 SOT lids for a standard can or high-speed filler, Baixi Cans can help align lid type, can format, and supplier evidence before production. That support is especially important for export orders, new co-packers, or brands moving from blank cans into custom printed stock.
Before production, send Baixi Cans the can size, end diameter, SOT requirement, beverage type, carbonation or pressure condition, filling-line model, thermal process, destination route, and any opening complaints from previous runs. Ask for the lid specification, score residual control evidence, lot traceability, and matching can-body recommendation. Use Baixi's contact page to align 202 SOT lid requirements before the order is locked.
Score line depth refers to how much the lid panel is weakened along the opening path, usually controlled through residual metal thickness. It determines whether the lid opens cleanly while still resisting leakage and pressure before opening.
Yes, a score that is too deep can leave too little residual metal, increasing the risk of leakage, premature fracture, or damage during filling and distribution. Opening ease should never be improved by sacrificing package integrity.
Yes, a shallow score can make the lid difficult to open, cause tab deformation, or create incomplete panel opening. Consumers experience that as a quality failure even when the can itself does not leak.
Plants should at least inspect affected lids and seams after a seamer or lid-feed jam because local damage can concentrate around the end panel, curl, or score area. The affected time window should be quarantined until evidence is clear.
No, 202 SOT lids share a nominal end family, but curl, score, tab, compound, coating, and supplier controls can differ. The lid must be matched to the can body, seamer tooling, beverage pressure, and release criteria.
