When you crack open a cold beer or a carbonated energy drink, you are interacting with one of the most highly engineered components of beverage packaging: the SOT (Stay-On-Tab) easy-open end. This small aluminum disc is responsible for maintaining internal carbonation pressure, ensuring a leak-proof hermetic seal, and providing a smooth pouring experience that defines consumer satisfaction.
Have you ever wondered why the lids on some 330ml cans look slightly larger than others? In 2026, with the global aluminum can market projected to reach $58.13 billion, technical nuances like lid diameter have become a mainstream priority for brand owners. Driven by the industry-wide shift toward lightweighting and BPA-NI (BPA Non-Intent) coatings, understanding the difference between 202 and 206 lids is no longer just for engineers—it’s a critical decision for brand strategists aiming for zero-defect production.
This guide explores the mechanical differences, pressure ratings, and application scenarios of 202 vs. 206 SOT lids. We also share exclusive insights from Baixi Cans, a leading Chinese integrated producer of two-piece cans and easy-open ends. Baixi’s integrated model solves the industry’s biggest headache: sealing failures caused by mismatched cans and lids.

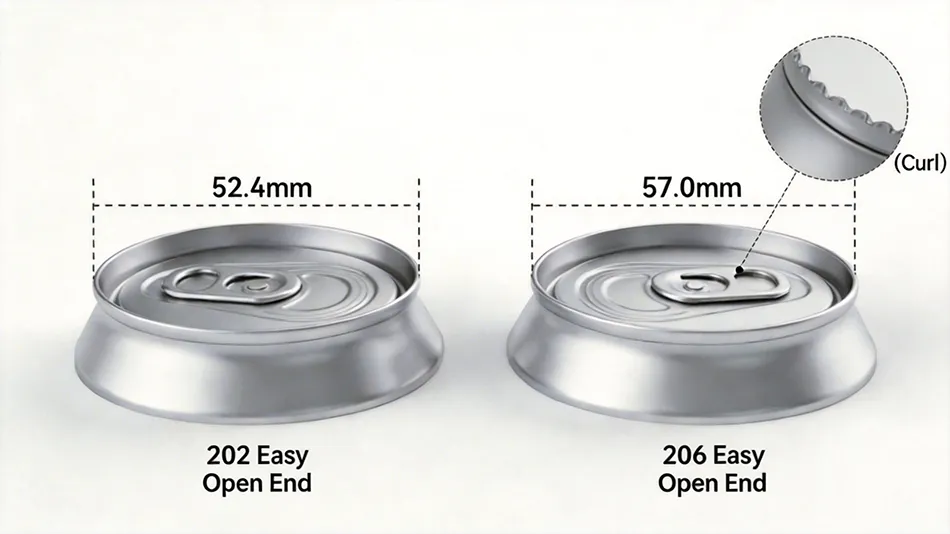

The numbers "202" and "206" are not arbitrary serial numbers; they are derived from a decades-old US customary unit system that remains the global language of the canning industry. This three-digit code represents the diameter in inches and sixteenths of an inch. Understanding this code is the first step in ensuring your filling line is calibrated correctly.
202: Represents 2 inches + 2/16 inches = 2.125 inches. In metric terms, this is approximately 52.4 mm.
206: Represents 2 inches + 6/16 inches = 2.375 inches. In metric terms, this is approximately 57.0 mm.
In short, a 206 lid is roughly 4.6mm wider in diameter than a 202 lid. While this seems like a microscopic difference, it fundamentally alters the necking process of the can body. A wider lid requires a wider can neck, which changes the top-load strength of the entire package. Choosing between them is a balancing act between the "hand-feel" of the can and the structural requirements of the beverage inside.
To choose the right
| Technical Parameter | 202 SOT Lid | 206 SOT Lid | Mechanical Implication |
| Curl Diameter (mm) | 59.44 ± 0.25 | 64.66 - 64.80 | 206 requires a larger seaming chuck. |
| Countersink Depth (mm) | 6.86 ± 0.13 | 6.40 ± 0.13 | 202 provides slightly better stackability. |
| Curl Height (mm) | 2.03 ± 0.15 | 2.01 ± 0.20 | Vital for consistent double seam thickness. |
| Material Thickness | 0.265 mm | 0.265 mm | Standard 2026 gauge for 5182 Alloy. |
| Pressure Rating | 90+ PSI | 95+ PSI | 206 offers a larger surface for pressure distribution. |
The success of a Double Seam depends on the perfect marriage between the can neck and the lid curl. If the alignment is off by even a fraction of a millimeter, you risk "false seams" or "droops." Suppliers like Qingdao Baixi provide a complete production system from raw materials to final delivery, ensuring that 100% on-time delivery and a 33% re-order rate are the direct result of this flawless component matching.
Modern lid technology in 2026 goes far beyond simple diameter. The internal geometry, or "profile," of the lid determines how it behaves under the immense internal pressure of carbonation and the external stress of vertical stacking.
While B64 has been the industry workhorse for decades due to its robust seaming performance, the CDL (Competitive Design Lid) is the strategic choice for the 2026 eco-conscious market.
The Engineering Shift: CDL lids utilize a unique countersink wall angle. This allows the lid to withstand the same 90+ PSI of internal pressure while using a thinner gauge of aluminum. By reducing the "curl" material and the countersink depth, CDL technology reduces the total weight of the lid by approximately 10%.
Impact on Brands: For a brand producing 10 million cans annually, switching to CDL can save tons of aluminum, directly lowering Scope 3 carbon emissions and providing a significant hedge against fluctuating raw material prices.

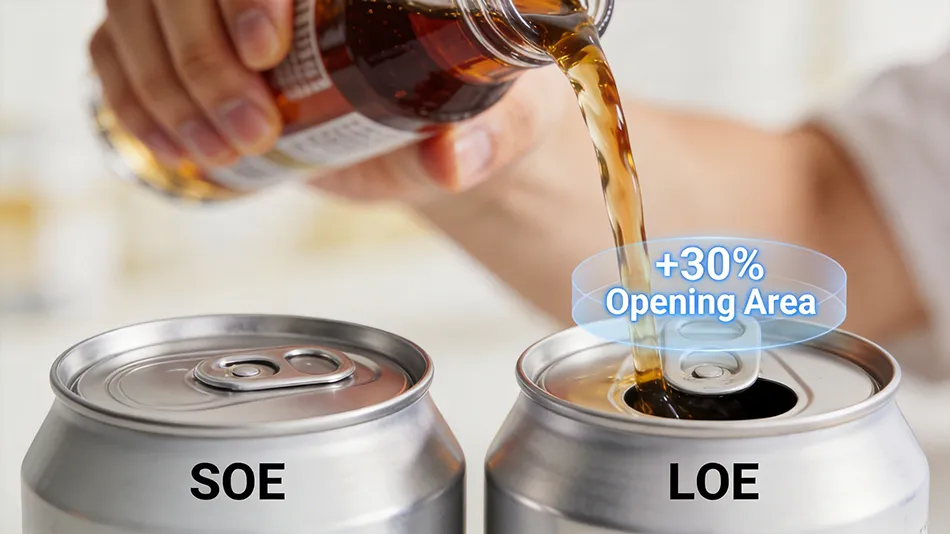

The aperture—or opening size—is the primary touchpoint of consumer "mouthfeel."
LOE (Large Opening End): By increasing the opening area by 30%, LOE allows air to enter the can as liquid exits, preventing the "glug" effect. In 2026, this has become the standard for craft beers and premium juices, as it mimics the experience of drinking from a glass, allowing the beverage's aroma (volatiles) to reach the nose more effectively.
SOE (Standard Opening End): Preferred for high-speed, mass-market soft drinks. It provides a controlled flow that is ideal for on-the-go consumption where spill prevention is a priority.
Choosing the right lid is a matter of aligning your packaging with the consumer's "occasion of use."
The
Conversely, the
The relationship between the can body and the lid is the most sensitive "touchpoint" in your entire supply chain. A mismatched lid doesn't just cause leaks; it causes catastrophic production downtime and potential product recalls.
A perfect seal is achieved through the Double Seam process, where the can't flange and the lid's curl are interlocked in a two-stage mechanical operation.
First Operation: The seaming roll tucks the lid curl under the can flange.
Second Operation: The seaming roll flattens the assembly to create a hermetic seal.
If you source a
This is where the Baixi Integrated Solution becomes a mechanical necessity. As a single-source manufacturer, we synchronize the tooling of our can necking machines with our lid stamping presses. When we produce your
We don't just check if they fit; we measure the Hook Length, Overlap Percentage, and Seam Tightness using high-resolution X-ray inspection. This "Single Point of Accountability" means that your filling line runs faster, with fewer jams and zero "leakers," which is why Baixi maintains a 33% re-order rate among global beverage leaders.

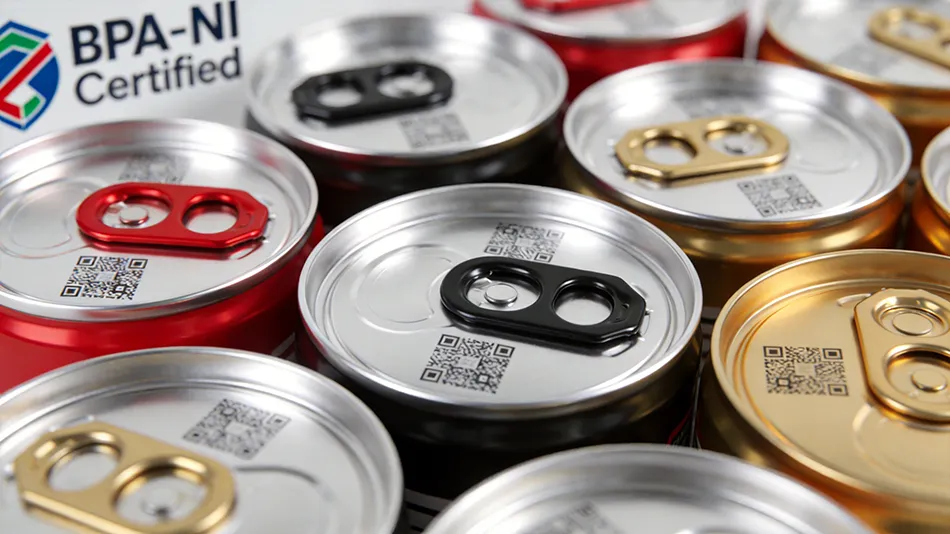

Customized Tab & Printing: In 2026, the lid is prime real estate. Baixi supports laser-engraved tabs, colored tabs (Red, Gold, Blue, Black), and high-resolution printing on the lid surface. This is perfect for "under-the-tab" promotion codes or QR codes that drive digital consumer engagement.
Flexible Supply Chain: Whether you are a startup requiring a 1-container MOQ or a global giant needing millions of units, Baixi scales with you. Our products are fully compliant with GB/T 9106.1-2019 and meet all FDA and EU food-grade standards for international export.
As we navigate the 2026 landscape, two major shifts are redefining lid manufacturing: Lightweighting and BPA-NI Compliance.
The "Lightweighting" movement is no longer just about saving money; it's about survival in a carbon-taxed economy. By optimizing the 5182 alloy formula, Baixi has successfully reduced the gauge of our 202 and 206 lids while increasing burst pressure resistance. This means you use less metal to achieve a safer product.
Simultaneously, the transition to BPA-NI (BPA Non-Intent) coatings is now a legal requirement in most major markets. Traditional epoxy-based liners are being replaced by advanced organosol or polyester coatings. Baixi’s lids are 100% BPA-NI compliant, ensuring your "Clean Label" brand identity is protected from the inside out.
Deciding between 202 and 206 lids—and choosing the right profile—is the final step in perfecting your beverage's "shelf-to-sip" experience.
Dimensions: 202 (52.4mm) is for modern sleekness; 206 (57mm) is for traditional robustness and high-flow pouring.
Profiles: Opt for CDL to save on material costs and B64 for maximum equipment compatibility.
Integration: Sourcing from an integrated supplier like Baixi eliminates the #1 cause of spoilage: mismatched seams.
Innovation: 2026 is the year of the colored tab and the BPA-NI liner. Don't let your packaging fall behind the curve.
Audit Your Seamer: Confirm if your current tooling is set for 202 or 206 diameters.
Test the Pour: If you are a premium juice or craft beer brand, request LOE (Large Opening End) samples from Baixi to test the sensory experience.
Confirm Compliance: Request the latest 2026 BPA-NI certification from your supplier.
Q1: Can I switch from 206 to 202 lids on the same can body?
No. The can body must be "necked-in" specifically for the lid diameter. Switching lid sizes requires changing your can body sourcing and your filling line's seaming chucks.
Q2: What makes Baixi’s lids different from standard commodity lids?
We focus on "Integrated Reliability." Because we produce the cans and the lids, we guarantee the double-seam integrity, which significantly reduces the 3% industry-average "seam failure" rate.
Q3: Are these lids suitable for nitrogen-dosed drinks?
Yes. Both our 202 and 206 lids are tested to withstand the internal pressures associated with liquid nitrogen dosing, common in RTD coffees and stouts.
Q4: Do you offer matte finish lids?
Yes, we can provide specialized coatings that give the lid a premium matte or textured feel, aligning with 2026's "sensory packaging" trends.
