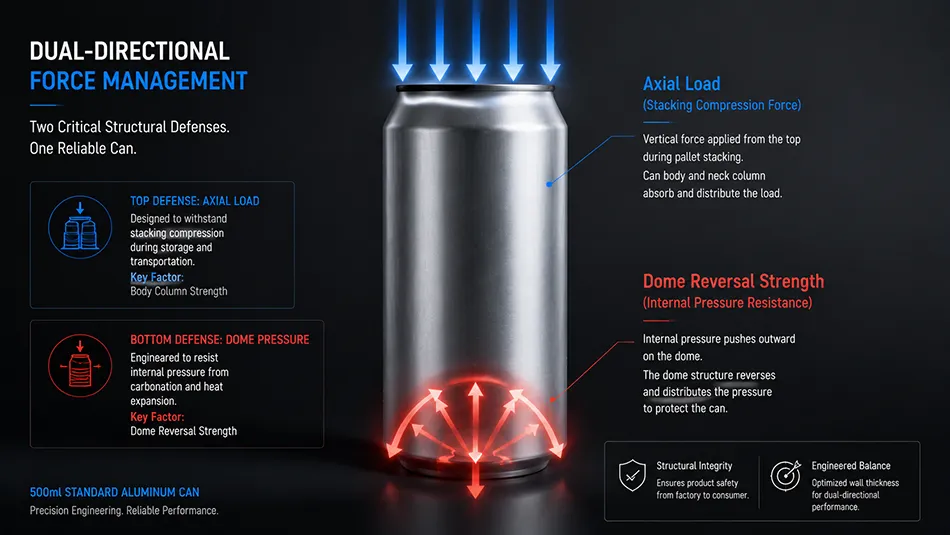

Axial load and dome reversal strength are two different structural gates in aluminum can selection: axial load protects the can from vertical compression in packing and transport, while dome reversal strength protects the bottom from internal pressure and heat. Buyers who review only one of them can approve a can that looks right on the shelf but fails in the warehouse, the container, or the filling line.
The issue has become more important as beverage cans become lighter. Lightweighting is valuable because it saves material and transport weight, but it leaves less room for vague specifications. Research on aluminum beverage can mechanics shows how design details, material behavior, and internal layers affect buckling performance. Package testing specialists also group pressure, buckle, axial, seam, and coating checks together because real can performance is a system.
Axial load matters because a can is not only a consumer package; it is also a small column inside a stacked distribution system.
During distribution, filled cans are packed into trays or cartons, stacked on pallets, wrapped, loaded into containers, moved by forklift, stored in warehouses, and sometimes exposed to vibration. Each step creates vertical and dynamic load. A can with weak axial load may buckle, wrinkle, or deform even when the beverage pressure is normal.
Axial load is especially relevant for taller cans, export pallets, warm storage, and packaging formats that reduce secondary-package support. A can may perform well as a single filled unit but struggle when the pallet pattern creates uneven compression. If the brand sells through long-distance export channels, top-load evidence should be part of the can selection file, not a late warehouse lesson.
For buyers, the important detail is that axial load is not the same as can weight. A slightly heavier can is not automatically safer, and a lighter can is not automatically risky. Geometry, bead profile, wall thickness distribution, neck design, internal pressure, and secondary packaging all influence the result.
Dome reversal strength is the resistance of the can's bottom dome to inverting or bulging under internal pressure. It is critical for carbonated drinks, nitrogenated beverages, warm-chain distribution, pasteurized products, and any SKU whose internal pressure can rise after filling. A dome reversal failure can make the can unstable and commercially unacceptable even before a catastrophic rupture occurs.
Buyers often underestimate dome reversal because the bottom is not part of the consumer-facing artwork. In practice, the bottom is one of the most engineered features of the can. Its concave geometry lets a thin package resist pressure, but it also defines a failure mode. If the dome reverses, the can may rock, jam, scuff neighboring cans, or trigger a retailer rejection.
Internal pressure is not only a formula. It is a function of carbonation or nitrogen condition, fill temperature, headspace, storage temperature, pasteurization exposure, and product stability. The dome reversal number is useful only when it is linked to those conditions.

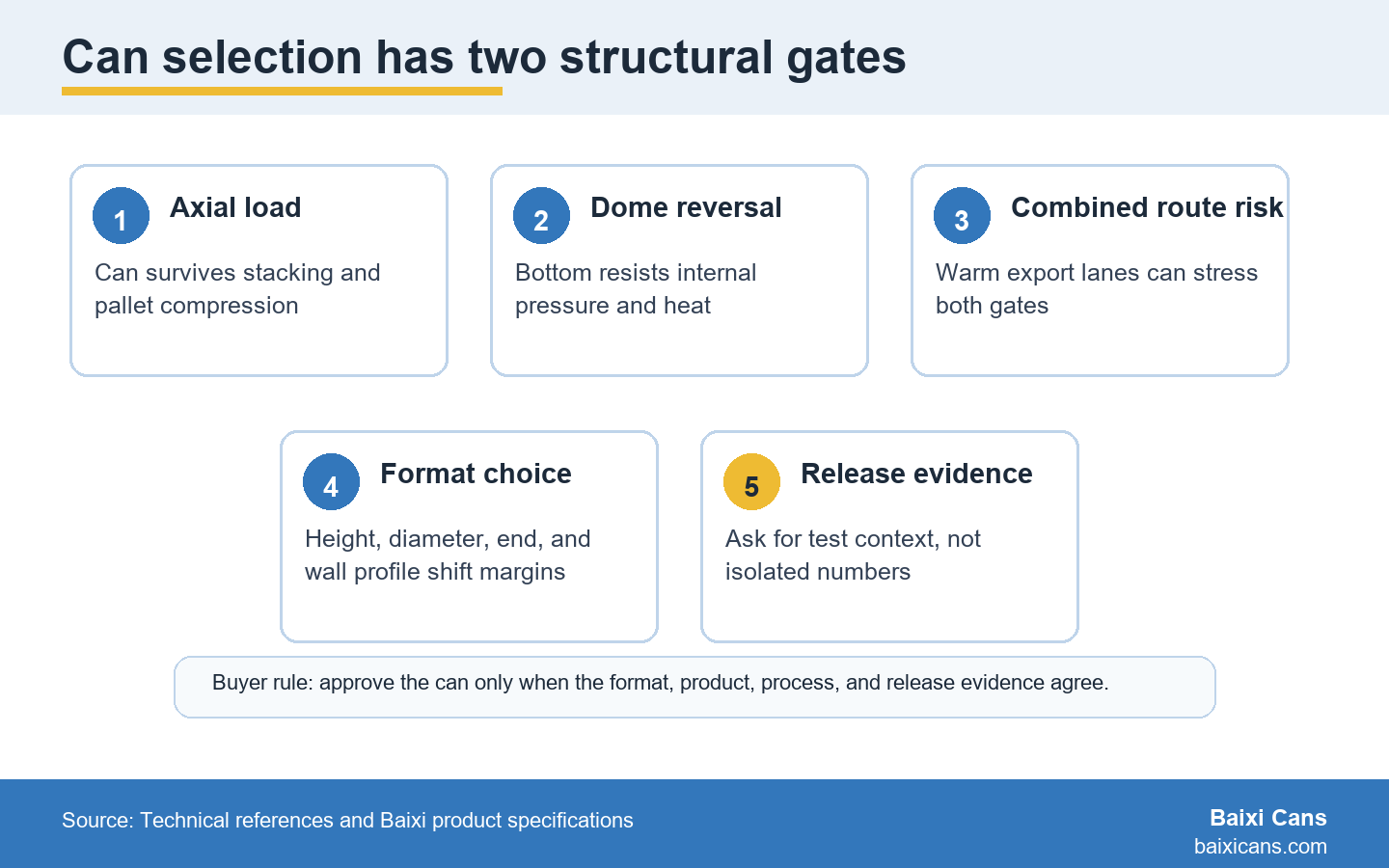

A can that passes axial load but has weak dome reversal is vulnerable to pressure; a can that passes dome reversal but has weak axial load is vulnerable to distribution.

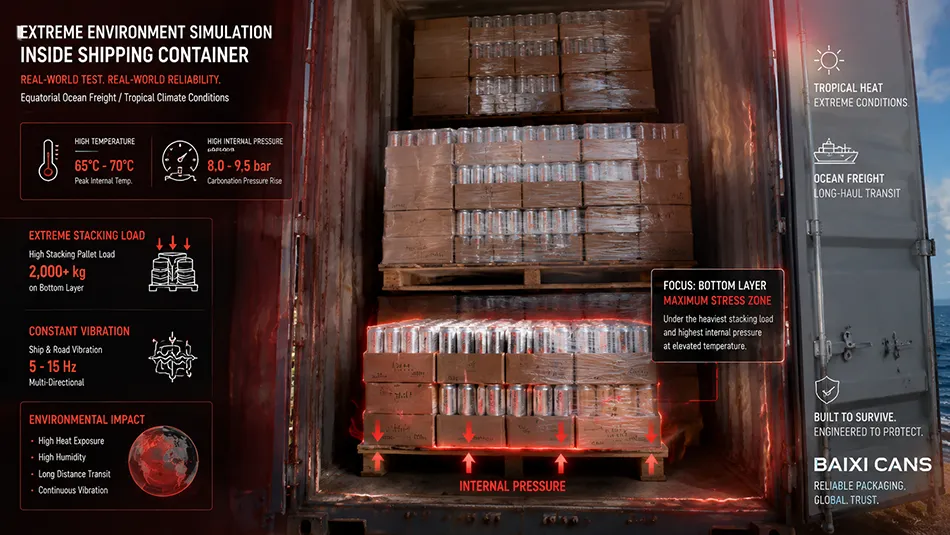

The two tests answer different questions, and real supply chains ask both at once. Consider a carbonated energy drink shipped in a tall slim can through a hot region. The product may create internal pressure during warm exposure, while the pallet also experiences compression and vibration. The brand does not get to choose only the pressure risk or only the stacking risk. The can experiences both.
This is why can selection should include a route scenario. A domestic chilled product in short distribution has a different risk profile from an export product that spends weeks in a container, arrives in a hot market, and sits in warehouse stacks. The same can family might be suitable for one scenario and need additional evidence for the other.
An illustrative route model makes the point. Suppose a brand plans a pallet height that places 18 layers of filled cans into a container route where temperature can rise substantially. If the can selection review checks only dome reversal, it may miss the vertical load from pallet stacking. If it checks only top-load, it may miss the pressure rise under heat. The safer decision is to request the pair: axial-load evidence for the packed configuration and dome-reversal evidence for the product pressure and temperature condition.
Standard, sleek, slim, stubby, and king cans do not merely look different. They change height-to-diameter ratio, guide contact, stacking behavior, surface area, end selection, and sometimes pressure behavior. A standard 500ml format and a slim 250ml format should not borrow each other's test assumptions.
Baixi Cans' 500ml standard aluminum can specification and 250ml slim aluminum soda can specification show why buyers need exact dimensions. The 500ml standard format lists a 211 body, 66.1 mm diameter, 167.84 mm height, and 202 end. The 250ml slim format lists a 202 body, 53.4 mm diameter, 134 mm height, and 200 end. Those dimensional differences change line handling and structural review questions.
A narrow, tall can may need more attention to transfer stability and secondary packaging. A larger standard can may need more attention to fill pressure, pallet mass, and end choice. Neither is inherently better; each needs evidence matched to product, route, and line.
Axial load and dome reversal are often discussed as body or bottom properties, but the double seam remains part of the structural system. A can under internal pressure pushes against the end and seam. A can under stacking load depends on body geometry and end support. If seam formation is poor, the package can leak or fail before the body reaches its nominal strength.
The AFDO and CFIA can-defect references show why seam defects such as false seams, droops, cutovers, and wrinkles deserve serious attention. These are not isolated line problems. They can change whether pressure and axial evidence remains valid for the filled can. A test result from a good seam does not protect a production lot with unstable seams.
For buyers, this means the selection file should include both supplier-side can evidence and filler-side seam evidence. The supplier can provide can and lid specifications. The filler or co-packer should provide seam teardown, leak testing, and release data from the actual line.
The simplest way to use axial load and dome reversal in procurement is to classify the SKU by product pressure and route compression. A still beverage in a short local route may need standard evidence. A carbonated beverage in a hot export lane needs stronger dome evidence. A tall slim can in high pallet stacks needs stronger axial evidence. A carbonated slim can shipped warm needs both.
| SKU condition | Main structural gate | Evidence to request |
|---|---|---|
| Still beverage, short route | Axial load and seam integrity | Top-load, pallet pattern, seam release data. |
| Carbonated drink, normal route | Dome reversal plus seam integrity | Pressure, dome reversal, end match, seam teardown. |
| Export route with high pallet stacks | Axial load under route conditions | Pallet height, case pack, container route, compression evidence. |
| Warm-chain carbonated or nitrogenated SKU | Combined axial and dome margin | Pressure-temperature scenario, top-load, seam, and retained samples. |
| Highly acidic beverage | Coating compatibility plus structural margin | Liner compatibility, pH, shelf-life, dome and seam evidence. |
The matrix is not a substitute for supplier data. It is a way to prevent the wrong evidence from being requested. A top-load number alone cannot answer a dome question; a dome number alone cannot answer a pallet question.
Structural numbers are easy to misread when suppliers do not state test context. A buyer may see a higher axial-load value and assume the can is better, but the comparison is weak if the test used a different end, empty rather than filled cans, a different temperature, a different sample condition, or a different acceptance method. The same problem applies to dome reversal. A value measured on a different can height or under a different pressure ramp does not automatically protect the SKU you intend to fill.
The practical comparison method is to normalize the question before comparing values. Ask each supplier to state the can body, end diameter, test condition, sample status, acceptance limit, and whether the result applies to your product category. Then compare the margin against your route scenario rather than the headline number alone. A supplier with a slightly lower isolated number but clearer test context may create less buyer risk than a supplier with a high number and no usable boundary.
This context-first approach also protects the buyer from over-specifying. If a still beverage in short local distribution is forced into an unnecessarily heavy format, the buyer may pay for strength the route does not need. If a carbonated export SKU is approved on a generic axial value, the buyer may miss the pressure and heat risk. The point is not to chase the largest number; it is to match structural evidence to the job the package must perform.
Baixi Cans' business relevance to axial load and dome reversal is direct: the company supplies aluminum beverage cans and lids across multiple can families, and buyers use those formats in carbonated, still, energy-drink, beer, and soft-drink applications. According to company materials, Baixi Industry has 15+ years of aluminum beverage packaging experience and multiple production lines, but the safer claim is not that every can is universally suitable. The useful claim is that Baixi can help buyers select and specify the format before structural risk appears downstream.
If a buyer is choosing between standard and slim, or between a domestic and export route, Baixi Cans can help frame the can body, lid, and customization choices that should be checked by the filler and confirmed by retained samples. That is a more credible role than pretending a catalog page replaces engineering validation.
Send the supplier a structural-use case, not only a size request. Include can format, beverage category, carbonation or nitrogen condition, pH, fill temperature, pasteurization exposure, maximum storage temperature, pallet pattern, case pack, destination region, end diameter, lid type, and co-packer line. Then ask which axial-load and dome-reversal evidence applies to the exact body and end.
If the beverage will be exported, stacked high, shipped warm, or filled under pressure, ask Baixi Cans to review the body and lid specification before you approve artwork. Use Baixi's contact page to share the route and structural requirements, then request a format recommendation, sample plan, and evidence list before locking the production order.
Neither is universally more important; axial load protects against vertical compression, while dome reversal protects against internal pressure. The right priority depends on product pressure, can format, pallet configuration, storage temperature, and route length.
Internal pressure can stiffen a filled can in some conditions, but buyers should not rely on it as a substitute for top-load evidence. Temperature, dents, seam variation, product pressure, and distribution loads can change the actual structural margin.
Taller or slimmer cans often need closer review of axial load, transfer stability, and secondary packaging. They are not automatically weak, but their height-to-diameter ratio changes how the package behaves during filling, stacking, and transport.
Dome reversal is usually most critical for pressurized beverages, but still beverages may still require pressure or bottom-stability review under hot-fill, thermal processing, or warm storage. The product and process determine whether the test is necessary.
Ask for axial-load evidence, dome-reversal or pressure evidence, seam compatibility, lid specification, coating compatibility when relevant, and the test conditions behind each number. A result without can size, end type, and product assumptions is incomplete.
