The part of an aluminum can that looks like a simple lid is where a separate end, a rolled closure, and an opening mechanism converge. In a typical two-piece beverage can, the body carries the sidewall and bottom while the end closes the top after filling; the package only works as an assembly. A stay-on tab is an opening system: the riveted tab acts on a scored panel, while an unscored hinge portion keeps the tab and panel with the end. That is why height, diameter, and artwork describe only part of the product. The body, end, seam, and interior barrier each answer a different technical question.

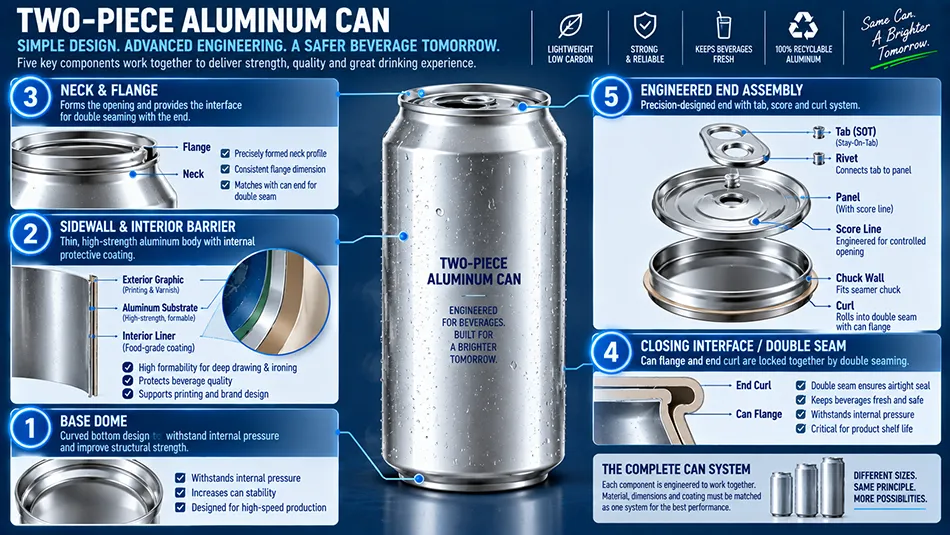

A typical two-piece aluminum beverage can is a body-and-end system joined by a double seam, not one stamped object with an added lid. A two-piece can means one body and one separately made end. This scope matters: three-piece food cans, aerosol containers, and specialty metal packs can use different constructions, even when they look broadly similar on a shelf.
For a packaging buyer, the useful mental model is not “can plus lid.” It is a lower body that holds form, an upper end that closes and opens, and a seam that connects them. When the format discussion moves from anatomy to selection, see the aluminum can format catalogue as a starting point for body families, then keep the end and closure fields in the same review rather than assuming a product image settles them.
The one-piece body includes the sidewall and base dome; the dome is a formed lower feature that strengthens the bottom rather than a purely visual indentation. In can making, a cup is drawn and ironed into a taller body, and the lower metal is formed into that recessed shape. The Can Manufacturers Institute’s educational material notes that the dome strengthens the bottom of the can, which is why the feature belongs in a structural description rather than an artwork brief. CMI’s can-making overview is useful here because it ties the familiar bottom shape to the body-forming process.
The inside coating is part of the beverage-contact system, so it should not be collapsed into the exterior decoration or artwork approval. The Aluminum Association describes exterior paint as the product label and internal coating as the barrier between the metal and beverage. Its manufacturing description supports a practical boundary: a new design may change the outside appearance without, by itself, identifying the liner specification or its suitability for a particular beverage.
The sidewall is also where a brand sees most of the graphics, but visual surface is not the same as the full body record. A buyer comparing slim, sleek, or standard forms should carry the body profile, height, diameter, and intended contents separately from the design file. For example, you can inspect a slim 250 mL can body reference to discuss visible proportions, then still ask which end family, seam review, and inner-coating scope belong to the proposed configuration.
The neck and flange create the closure interface: they are the body-side features that must be reviewed with the end curl before the rim can become a double seam. The closure interface is the matching pair of body and end edges that become the seam. It is the handoff point between two separately made components, so it deserves more attention than a shorthand reference to “the top.”
That distinction also keeps responsibility clear. The body supplier, end description, and filling or seaming review may be discussed by different people, yet they converge at one rim. A drawing or record that names only the body shape leaves the reader unable to see whether the intended end and flange have been considered as a pair.
The neck is a closure feature: it brings the body to the lid system, and the flange is the body-side edge that enters the seam. The Aluminum Association explains that necking reduces the open-end diameter to match the lid and that the flange is then formed as part of the seal. Its manufacturing sequence connects those two body-side changes. CMI’s published 202 reference also lists end curl and countersink fields separately from body flange and neck fields. Those separate reference fields are a useful reminder that a can capacity or a sidewall diameter does not substitute for a body-neck and end-profile record.

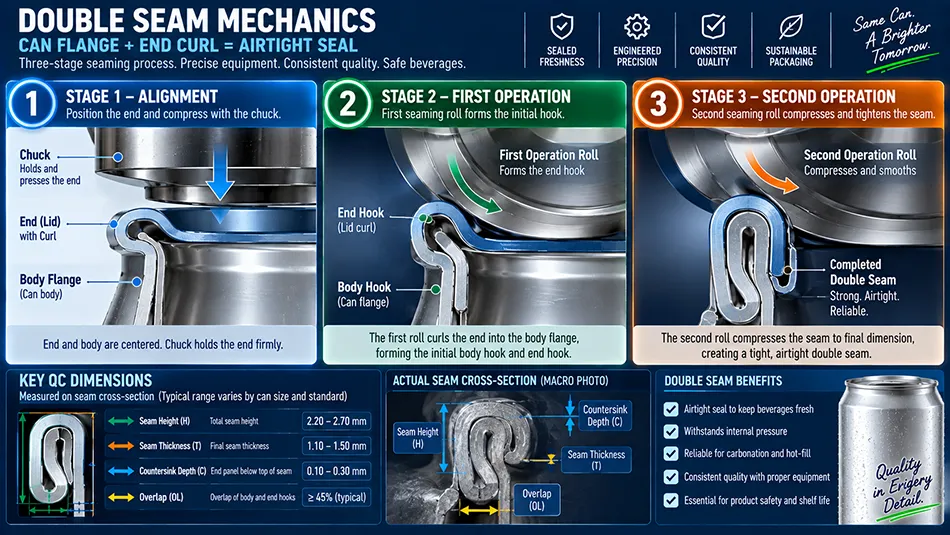

The double seam is the rolled mechanical closure created when the body flange and end curl are interlocked and compressed around the rim. In plain language, the flange becomes the body hook and the curl becomes the end hook; the two folded pieces lock together during closing. Canadian technical guidance uses the same flange-and-curl definition and makes clear why seam integrity involves the assembled interface, not merely a neat-looking outer rim.
The important boundary is not a universal number a buyer can copy into every project. Can size, component design, equipment, and supplier guidance all affect how the completed closure is reviewed. The practical step is to ask which records identify the body flange, selected end curl, and applicable seam review for the actual pack. That keeps a general anatomy lesson from being misused as a line setting or an acceptance limit.
The end is its own engineered component: its curl, chuck wall, panel, score and tab carry different roles before and after it is joined to the body. The curl is the edge that enters the seam. Moving inward, the chuck wall and panel give the end its formed geometry; the score marks where opening can occur; and the tab transmits the opening action. An EPO publication describing a beverage-can end identifies this same chain of features, from curl and chuck wall to panel, score, and tab. That component description is more useful than calling the whole assembly a lid and stopping there.
This separation is especially helpful when a buyer changes a format. A body can look familiar while the end family, opening panel, or curl profile still needs its own review. On Qingdao Baixi Industry’s product site, compare can-lid options alongside the end structure to organize the conversation around the top component, but remember that a catalogue choice is a reference—not evidence that a specific assembled pack has been validated.
A stay-on tab (SOT) is a pull tab that remains attached while it opens the scored panel. The seam around the rim performs the sealing job; the score and tab operate inside that rim to create the opening. A US patent on a non-detachable tab end describes the same sequence: a riveted tab acts on the scored tear panel, and the unscored portion retains the panel and tab with the end. The mechanism matters because a tab label alone does not describe every aspect of opening feel, end geometry, or project-specific approval.
In other words, the visible top performs two distinct jobs. Its outer curl participates in the closure; its central panel, score, rivet, and tab create a controlled opening. Keeping those jobs separate makes it easier to ask the right follow-up question: “Are we reviewing the rim connection, the opening system, or both?”

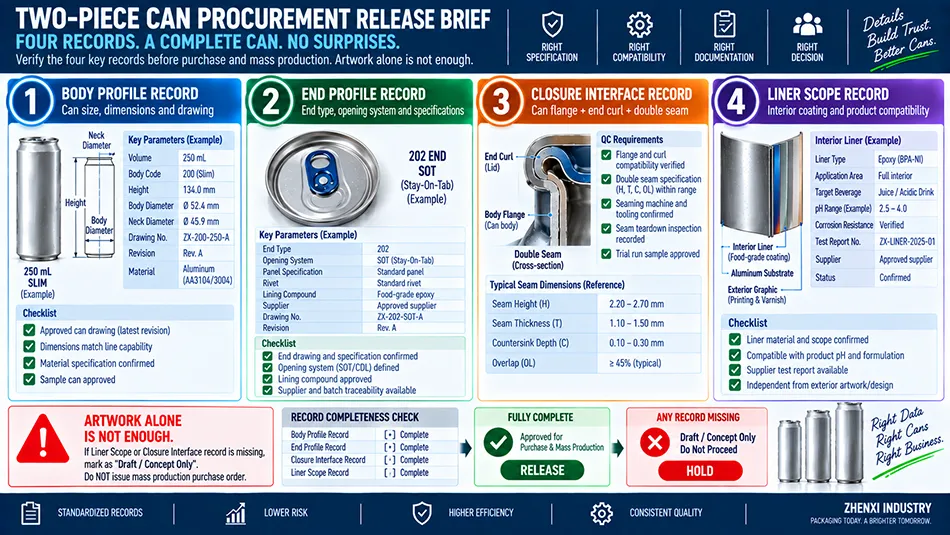

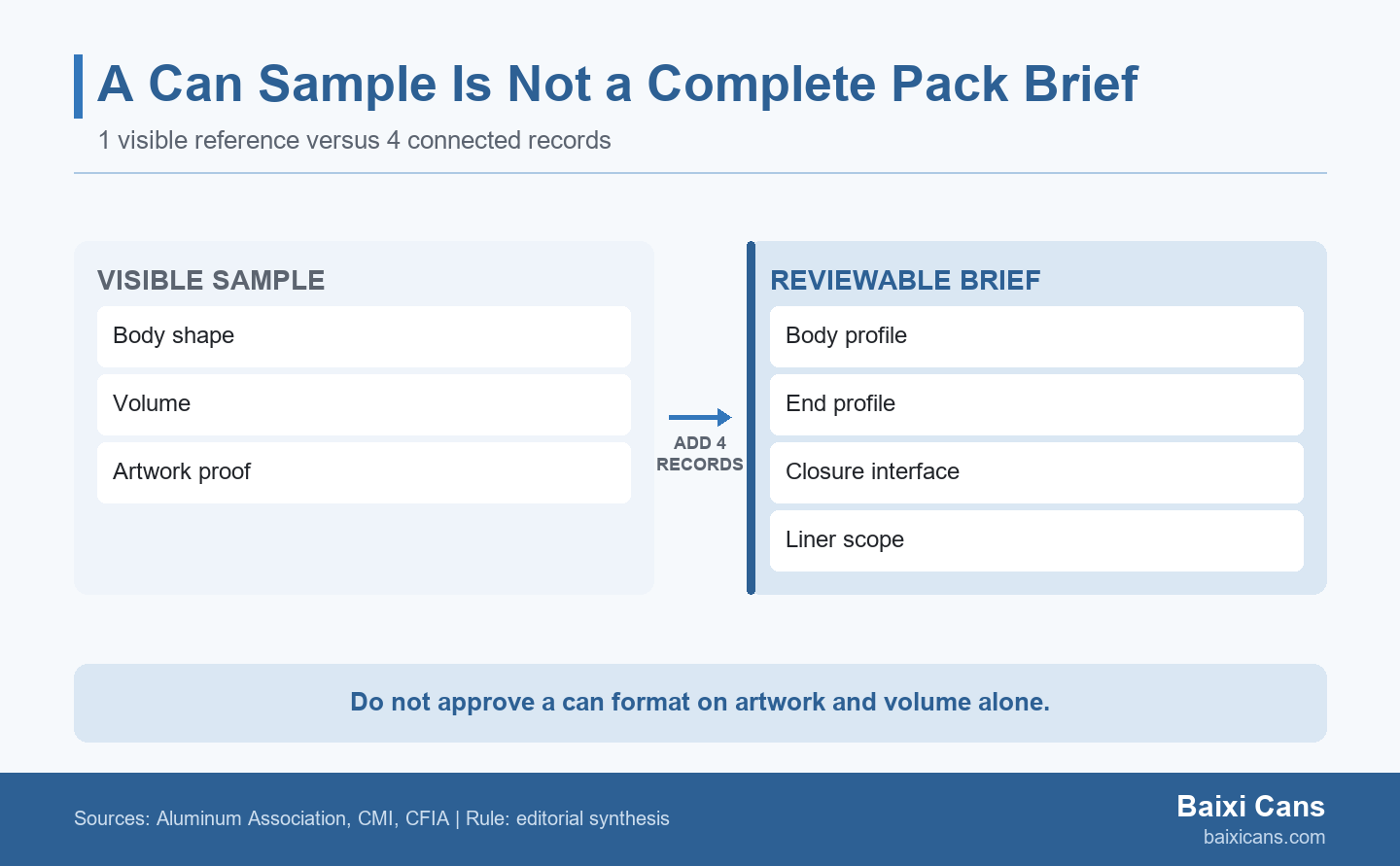

A visible can reference becomes a reviewable packaging brief only when the body profile, end profile, closure interface and liner scope are recorded together. This is a four-record completeness check, not a branded engineering standard and not a substitute for project drawings or qualified review. Its value is simple: it exposes what a polished product image cannot prove on its own.
The reasoning is cumulative. The body profile explains the lower assembly; the end profile explains the top assembly; the closure interface explains how they meet; and liner scope keeps the inside of the package from disappearing behind exterior graphics. If one record is missing, the team can still discuss a concept, but it has not yet documented the full pack it intends to buy, fill, or approve.
An artwork-approved body sample cannot establish the assembled pack when the selected end, seam review and liner scope remain unrecorded. The following is an illustrative packaging scenario, not a Baixi customer case or a claim about any named production result.
A beverage brand is preparing a first commercial can format and has an illustrative order for 36,000 units of a 250 mL sparkling beverage. The artwork proof is approved on an empty body reference, and the commercial discussion is ready to move forward. However, the approval packet contains only the body-facing reference and artwork files; it does not describe the completed body-end assembly.
Two gaps appear when the team compares the sample with the four-record check. The selected end and its opening style are not tied to the sample revision, and the closure and liner questions are absent from the handoff. The evidence set therefore contains 1 body reference, 1 end description and 1 packaging approval packet, rather than a complete assembly record. The sample is still useful for appearance, but it represents only part of the package; the missing records are the pieces that define how the body is closed and what must be reviewed on the beverage-contact side.
The right decision is to hold final format approval, issue a revised request naming the body profile, end description, double-seam review requirement, and beverage-contact coating scope, and proceed only when the current records represent the intended assembly. That may add a document step before the 36,000-can launch, but it avoids treating a visual body sample as proof of a complete configuration. The example does not prescribe a seam setting, certify a liner, or replace a supplier’s project-specific confirmation.
Before a supplier discussion, put the selected body, end, closure interface and beverage-contact coating scope in one brief, then state the project review still required. A useful request can be short, but it should make the assembly visible to everyone who needs to comment on it.
That packet does not turn a supplier page into an automatic technical approval. It gives the conversation the right starting fields, preserves the boundary between appearance and assembled performance, and reduces the chance that a late component question is discovered after artwork has already been approved. When a larger body is under consideration, use Qingdao Baixi Industry’s product site to use a 500 mL format to apply this structural checklist.
A typical two-piece aluminum beverage can has a one-piece body with a base dome, sidewall, neck, and flange, plus a separate end with a curl, panel, score, and opening tab. The visible body establishes the package form, while the end provides the closure and opening features. The two pieces become one package at the double seam around the rim. Other metal-can constructions may add side seams or different end arrangements, so this parts list is specifically for the common two-piece beverage-can format.
No: in a typical two-piece beverage can, the end is made separately and joined to the body at the flange-and-curl double seam after filling. Calling it a lid is understandable in ordinary conversation, but it can hide useful distinctions between the end shell, the opening panel, and the body-side flange. For sourcing or technical review, identify the body and end as separate components, then confirm how their selected profiles are meant to meet at the closure.
The double seam is the rolled mechanical closure formed when the body flange and end curl are interlocked and compressed around the can rim. It is the connection that turns the separately made body and end into a closed container. A seam should not be judged only by a generic photo or a copied dimension, because the appropriate review depends on the actual component design, equipment, and project guidance. Ask for the relevant assembly and review records instead.
Not necessarily: exterior decoration and the interior protective coating are separate features, so a design change does not by itself define the liner used for the beverage-contact side. A new printed design may leave the internal coating scope unchanged, or a beverage change may create a separate question even when the artwork stays the same. Keep the art file and the beverage-contact coating discussion as different approval fields, then obtain project-specific confirmation for the intended product.
