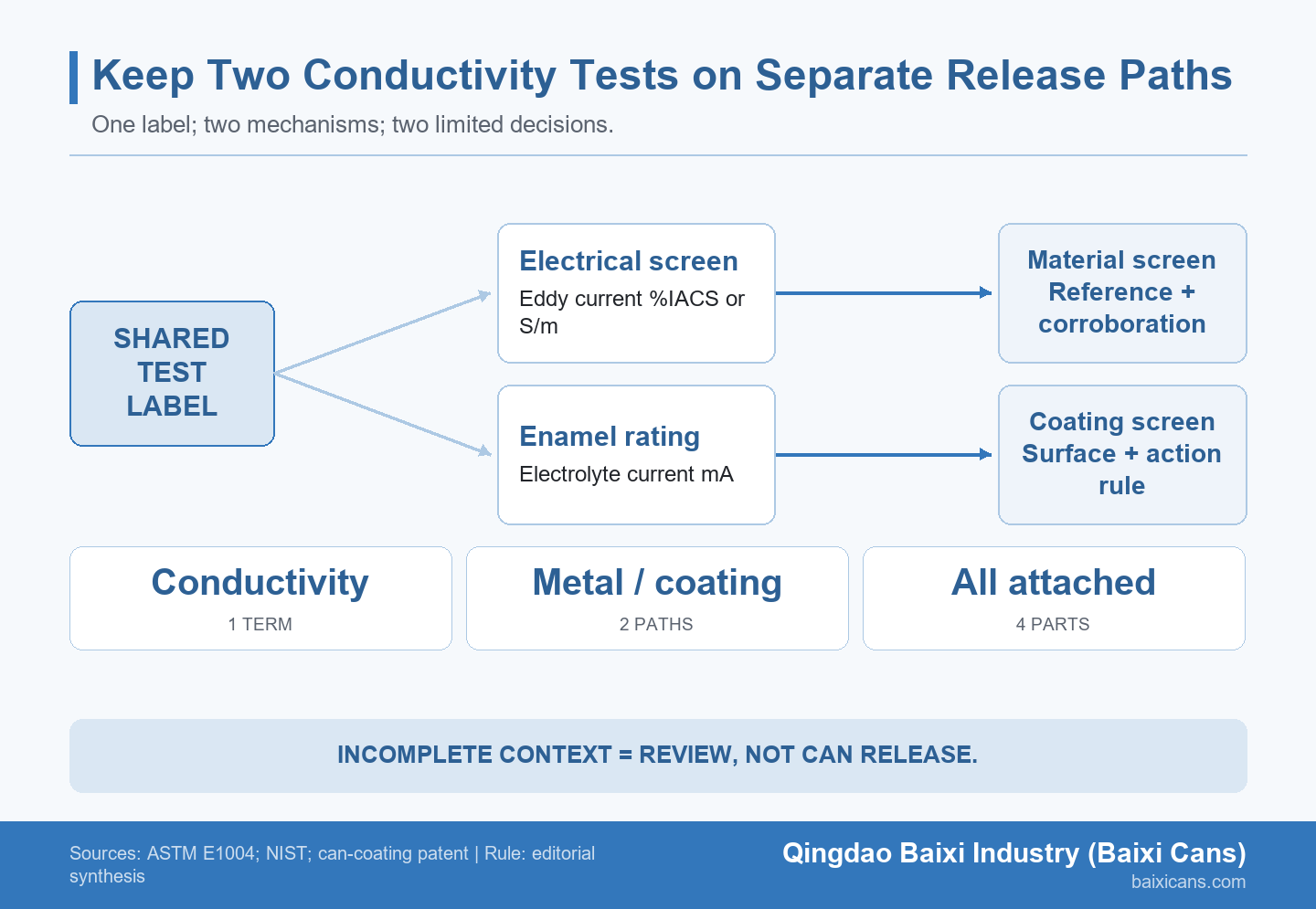

An aluminum-can project is not ready to release merely because a report is headed “conductivity.” That label can refer either to an eddy-current reading of the metal or to a coating-exposure current test that uses an electrolyte path through the internal coating. The two tests use different specimens, units, and risk questions, so their results need separate records and separate decisions.
Conductivity becomes usable only when the test family and decision are identified. Before reviewing a value, a buyer should be able to say whether it is a material-screening result or a coating-exposure result, which component it covers, and what the result is permitted to trigger.

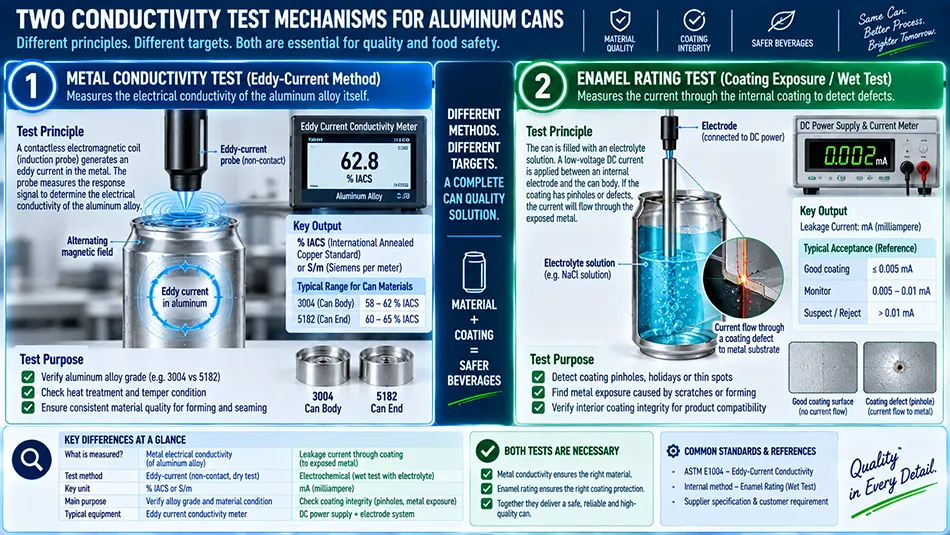

Electrical conductivity and enamel rating are different measurements that should not share one acceptance meaning. An eddy-current electrical-conductivity method concerns how a metal sample responds to an electromagnetic measurement. It is a contactless reading that compares a metal sample against known references. In contrast, the can-coating test mechanism uses an electrolyte and low-voltage current to find conductive paths through the internal coating. A report that calls both readings “conductivity” without naming the method makes it too easy to carry a number into the wrong quality decision.
The units provide an early warning. A material result may be reported as an IACS percentage or S/m; a coating-exposure result is commonly reported as current in mA. The difference is more than notation: one test is looking for a controlled response from the metal, while the other is looking for a path from the electrolyte through the internal coating to metal. Neither unit can be converted into the other, and neither should inherit the other's pass or fail rule.
Ask four questions before comparing readings from two suppliers or two production runs: What is the test called? Which component was tested? What condition was the specimen in? What decision does the recorded value support? Those questions turn an ambiguous spreadsheet label into a traceable quality record without inventing a generic threshold for every can format and beverage.
ASTM E1004 is a method boundary for eddy-current electrical-conductivity measurements, not a universal aluminum-can pass limit. In plain terms, it describes a contactless measurement that compares a metal sample with known references. The method reports electrical conductivity as %IACS or S/m; %IACS is a conductivity comparison against a copper reference at a stated temperature, not a grade assigned to a finished can. ASTM frames the reading as a comparative aid for variables such as alloy, heat treatment, temper, hardness, and corrosion. NIST’s reference-material certificate identifies the calibration role of these materials for eddy-current conductivity meters and secondary conductivity standards.
ASTM gives 20 °C as the reference condition for 100% IACS. That is why the report should identify the sample condition and instrument setup before a buyer compares values from different lots, gauges, or laboratories. A percentage without its reference temperature should not be copied into a release decision as though it were a universal product grade.
A calibration path is part of that context. For a buyer, that changes the request from “send the conductivity number” to “show the reading with its reference, measurement condition, lot, and intended comparison.” A number without those details may still be useful for an internal investigation, but it is not yet comparable evidence for a finished-can decision.
The standard therefore improves repeatability and interpretation, but it does not decide whether a finished can suits a formula, a seam system, a body geometry, or a storage target. Those are separate product and process questions that need their own evidence and an agreed action rule.
An eddy-current conductivity result can support material sorting or investigation, but it needs corroborating material evidence before it is used for release. It is most useful when the specification already states the material family, material condition, comparison reference, and what a departure should trigger—for example, a document review, a second material check, or a hold on the affected scope. ASTM B557 treats tension testing as evidence about strength and ductility in aluminum-alloy products, while also noting that a standardized specimen may not represent the complete product or service behavior.
Do not use a single electrical result to certify every property that matters to a can. The point is not that every can project needs a tension test; it is that a metal-screening result and a performance conclusion are different evidence categories. The electrical reading may help identify where a controlled comparison deserves attention, but it does not complete the material or performance picture by itself.
A disciplined record keeps the result in its proper lane. It identifies the component and lot, the sample form, the instrument and reference, the reading and unit, and the defined follow-up. If a result looks unexpected, the first action is to verify the measurement context and the material documentation, not to use an unqualified number as proof that the finished can is suitable or unsuitable.
An enamel-rating current in mA signals a conductive path through an internal coating; it is not bulk alloy conductivity or shelf-life proof. In the controlled test, a coated can becomes an electrical path and the current indicates exposed-metal paths through its internal coating. A can-coating tester patent record describes filling the can with electrolyte, applying a DC signal, and measuring current flow as an indication of metal exposure. A 2025 peer-reviewed study of food-can applications also found limits in using enamel rating as a standalone coating-quality indicator under its study conditions.
That mechanism explains why the report must name the tested surface, electrolyte and procedure: a body-side result does not automatically describe an end, a neck area, or another coating system. Treat an mA reading as a defined exposure screen, then keep coating selection, product compatibility, seam performance, storage conditions, and any project-specific acceptance action in the wider evidence package.
This does not make enamel rating unhelpful. It makes its purpose clearer. A meaningful record says which coating and surface were tested, what the applied procedure was, what range or response rule was agreed, and what investigation follows when the reading does not fit that rule. Without those details, a low or high mA value has little transferable meaning.

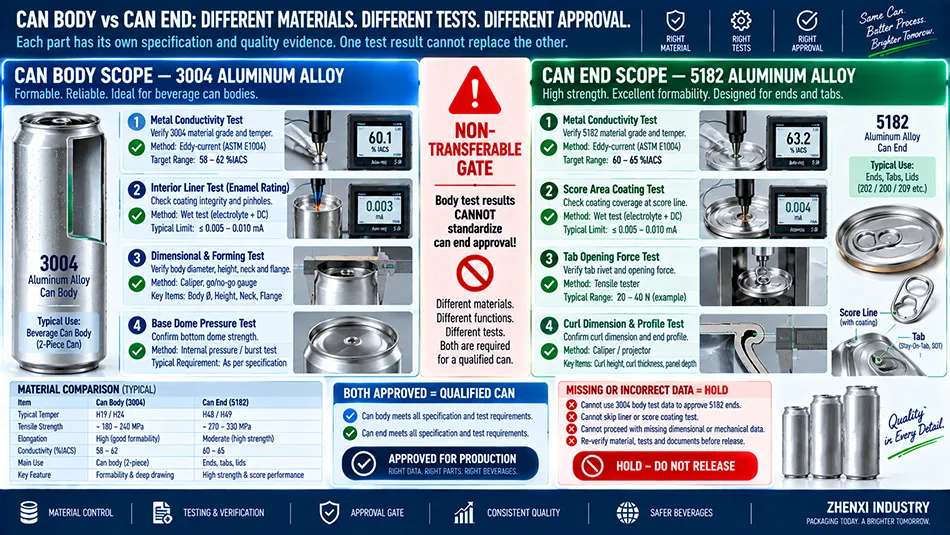

Beverage can bodies and lids can use different aluminum alloys, so their evidence scopes should remain explicit. The Aluminum Association’s standards overview uses 3004 for the beverage-can shell and 5182 for the lid as industry examples. That distinction does not identify the alloy in any supplier’s product; it shows why a body record should not quietly become an end record. When a buyer is evaluating a Qingdao Baixi Industry (Baixi Cans) format, it is useful to review the aluminum can format against the test scope before applying any body-side document to the wider project.
Neither conductivity result approves the complete can system on its own. Here, a release boundary means the specific check a measurement may inform before another record is required. The electrical reading may support a material investigation; the mA reading may support a coating-exposure investigation. The buyer still needs the body geometry, material and coating context, plus the evidence required by the beverage and agreed specification. That separation prevents one apparently complete file from being mistaken for a finished-can approval.
The same separation applies when an easy-open end is part of the purchase. End material, coating exposure, opening performance, and seam-related evidence are not duplicates of a body reading. Keep component names, coating systems, test procedures, and acceptance actions on distinct lines before consolidating the project file. This is especially important when the body and end have different material or coating histories, or when a separate party has supplied one of the records. A body report may establish what was measured on the shell, yet leave the end material, coating surface, opening feature, and closure evidence unaddressed. Writing that gap down is more useful than assuming the two components have the same test history. A buyer can then compare the lid family with the body-side evidence request.
A mixed conductivity report should be separated and completed rather than averaged into one release decision. The following is an illustrative decision model, not a customer case or a recommended acceptance value.
A beverage brand is qualifying a new 250 ml slim can with a selected easy-open lid for a formula and storage target already defined in its project brief. An illustrative 48,000-can pre-production run is waiting for technical release before the buyer confirms the next production step. The buyer receives one sheet headed “conductivity,” with a %IACS result for material samples and a separate mA result for internally coated cans.
The %IACS sheet names a meter result and lot but does not state the reference standard, sample temperature, or corroborating material check. The mA sheet identifies coated can samples but does not state whether the result covers the end, which procedure was applied, or what product-specific action follows. Each sheet contains a value, but neither yet carries the context needed for the decision it appears to support.
The values cannot be averaged or used as a joint pass mark. The first sheet is a material-screening record with a method-context gap; the second is a coating-exposure record with a coverage and decision gap. Keep the 48,000-can run on technical review, use the electrical reading only as a material investigation signal, and request the missing coating-test scope before release. The illustrative exposure count is 48,000 cans × one unresolved release scope = 48,000 cans without a complete decision record; this is not a defect estimate, only the reason the temporary hold applies to the run.
The supplier reissues two records: one ties the eddy-current result to its reference and material corroboration; the other ties the enamel-rating result to the tested surface, procedure, and agreed response rule. The buyer releases the run only after each record is complete for its own purpose and the body, lid, and product evidence scopes are documented separately. This example does not set a sample size, acceptance value, beverage-compatibility result, or supplier-performance claim.

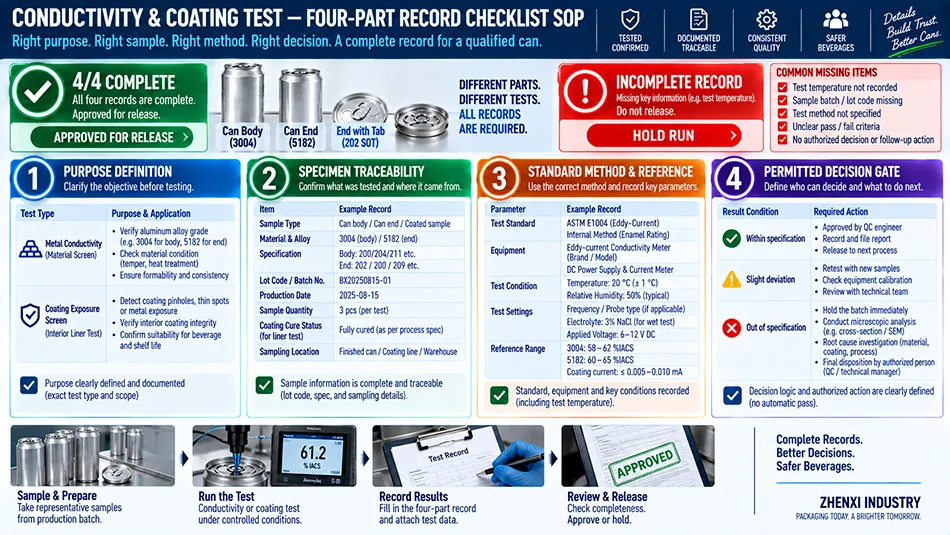

A conductivity result is decision-ready only when purpose, specimen, method reference and permitted decision remain attached. This four-part record is a simple way to prevent a useful screening value from being treated as a complete product release certificate.
Before the record is signed off, check whether all four parts refer to the same revision and the same component. A body sample, an internally coated body, and a finished can with an end attached are different specimens even when they share the same commercial project name. If the intended action changes from comparison to release, confirm that the additional evidence needed for that stronger decision is also present. This prevents a laboratory or supplier note from being copied into a release approval without the conditions that gave the note meaning.
If one part is missing, ask for completion before relying on the number. This approach is intentionally narrower than setting a universal mA or %IACS threshold because the acceptable evidence depends on the can component, coating system, beverage conditions, and the parties’ specification. Buyers that want a supplier conversation to follow a clear specification can see the packaging service process that follows an agreed specification.
A focused evidence packet keeps supplier review tied to the correct test scope. Send the can format and intended component list, the product or storage conditions that affect the request, the current material and coating records, the named test procedures, and the decision you need from the review. Add the document revision and lot connection when they are available, so the recipient can see whether the body, lid, and coating records describe the same proposed configuration. If the project has a separate product-compatibility plan, identify that plan rather than assuming a conductivity result replaces it. This preparation helps the supplier return a focused question or a meaningful list of missing records instead of a generic response.
For a preliminary conversation with Qingdao Baixi Industry (Baixi Cans), state separately whether the question concerns the body, the lid, the internal coating, or the relationship between them. Then identify what is missing: a reference condition, a component scope, a test procedure, a response rule, or another piece of evidence. That is enough to request an evidence-scope review without implying that a single conductivity value settles the finished-can decision: request an evidence-scope review for your can project.
ASTM E1004 is not a coating-integrity standard because it defines a controlled eddy-current electrical-conductivity method for nonmagnetic materials. It can help define a controlled metal measurement, but a coating result needs its own enamel-rating or other agreed coating procedure, tested surface, and action rule. Do not use an ASTM E1004 reference to imply that the internal coating, end, seam, or product compatibility has been approved.
A %IACS reading cannot, by itself, confirm an aluminum can alloy because it is a controlled comparison rather than a material certificate. It can support sorting, comparison, or investigation when the sample and reference conditions are controlled, but it does not replace the specified alloy, temper, lot documentation, or corroborating material evidence. If the reading is unexpected, first verify the method context and component scope rather than declaring the entire can material accepted or rejected.
A low enamel-rating current cannot, by itself, prove shelf life because it only indicates conductive exposure under the stated test. It does not independently prove beverage compatibility, seam integrity, mechanical durability, or shelf-life performance. Its meaning depends on the coating, tested surface, electrolyte, procedure, and agreed response rule. Keep the mA result inside a broader package of evidence that matches the formula, storage conditions, and finished-can requirements.
A useful report identifies the test purpose, specimen and lot, method or instrument, reference condition where relevant, result unit, acceptance or response rule, and next action if the value falls outside that rule. It should also say whether the record concerns a body, lid, or coated surface. That structure lets a buyer compare like with like and prevents a material-screening value from being treated as a coating or shelf-life certificate.
