The costly mistake is not confusing two forming operations; it is treating a good-looking necked body as proof that the later end-and-seamer system is approved. Body release and line release answer different questions. The first asks whether the formed body matches its drawing and forming evidence. The second asks whether that current body, a specified end, the actual seamer and the finished can have been evaluated together. Keeping those gates separate gives beverage teams a clearer way to source bodies, prepare trials and contain changes before filling begins.
A two-piece beverage can body and separately formed end meet later in a double-seaming operation, so the body and the filled can do not share one evidence stage. That sequence is the reason a can-body release cannot, on its own, prove final closure performance. The body supplier can document the formed opening and rim; the filler still has to verify the specified end and the resulting sealed package. See the two-piece can construction described in the patent record.

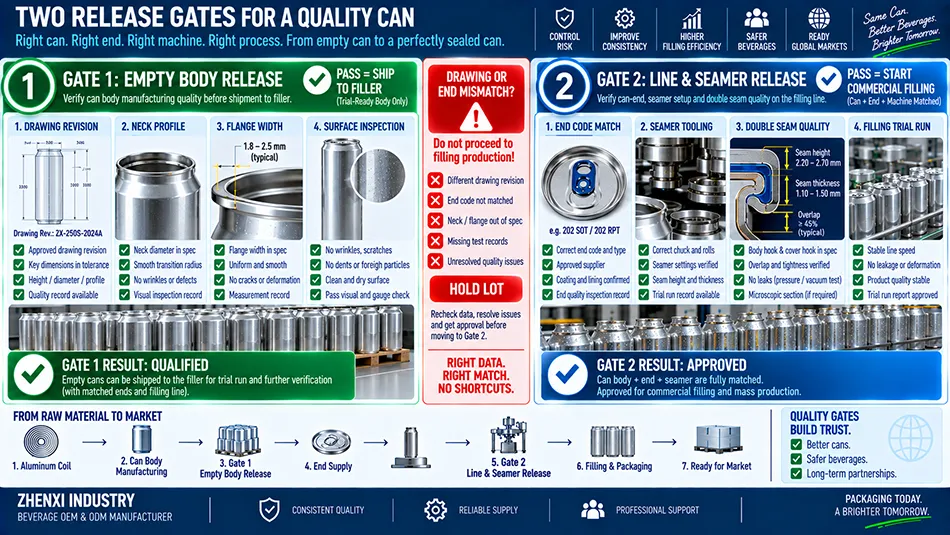

Use one gate for body release and another for line release; a clean-looking necked body is not a blanket approval of an end-and-seamer system. Gate 1 asks whether the body drawing, neck profile and flange record are current and controlled. Gate 2 asks whether the intended end, seamer tooling, filler conditions and finished-can checks represent that same body. This is an evidence-organizing rule, not a universal quality procedure or a substitute for a filler’s own release plan.

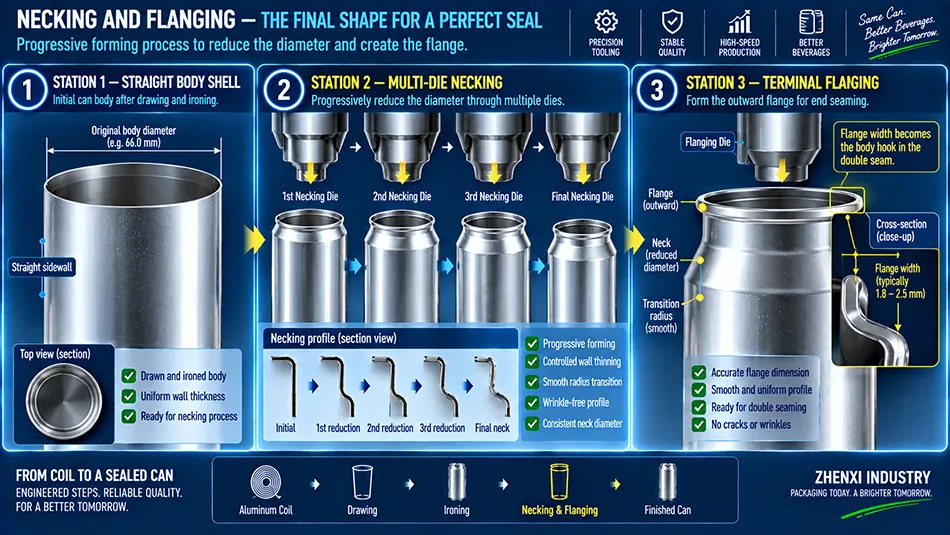

In aluminum can manufacturing, necking reduces the open-end diameter to match the intended lid rather than changing the entire can body diameter. Necking means reducing the open-end diameter of a can body. Flanging means turning the terminal rim outward for later seaming. The Aluminum Association places necking near the end of can manufacturing and notes that the reduced opening is matched to the lid; it does not prescribe a lid code, a body diameter or a tooling tolerance for every project. Read the Aluminum Association’s can-manufacturing overview.
For a buyer, the practical distinction is simple. A can format is not merely a nominal volume or a printed surface; it also carries a body geometry that must be paired with its intended end system. Teams comparing a narrow profile can review a printable 250 mL slim can format alongside its own body-and-end brief. That comparison should identify the current body drawing and intended end, not borrow a conclusion from a different can profile.
Necking commonly uses one or more controlled reductions before the terminal edge is flanged, so the flange operation receives a previously formed body edge. A technical patent description explains the conventional sequence as one or more reductions through tapered necking dies followed by outward flanging of the terminal edge. It is useful mechanism evidence, not a requirement to use a fixed number of stations. Review the documented necking-and-flanging sequence.
That order matters because the final rim has already experienced the preceding forming path. A specification change, a different body geometry, or a record that does not identify the current drawing should therefore be treated as a technical handoff question. The right request is not “Does this can have a smaller top?” It is “Does this current body record describe the geometry that will be used with this specified end?” That wording keeps the discussion close to evidence rather than appearance.
The outward flange is the body-side material later formed into a body hook in the double seam, which is why it has a downstream mechanical job. A double seam is the mechanical joint that interlocks the can body and end; within that joint, the body hook is the folded body-side portion. FDA container-integrity terminology identifies the outwardly flared body edge as the material that becomes the body hook, while the end curl becomes the cover hook. See the FDA’s double-seam component definitions.
That relationship is the key boundary. An empty-body inspection can assess the flange as incoming material for a later seam, but it cannot report the completed body hook, overlap or tightness because no seam exists yet. Conversely, a finished-can seam result should not erase the need to know which body drawing and forming record entered the trial. Keeping both records traceable is more useful than treating either one as a standalone compatibility certificate.
Wrinkling in the formed neck can compromise the material presented to the flanging operation, so a rim observation needs a documented technical follow-up rather than a cosmetic pass. Multi-stage forming literature specifically describes the objective of providing flanging metal free of wrinkles. It explains a material-and-process mechanism, not a defect limit, rejection percentage or sampling frequency. Read the wrinkle-control mechanism in the necking patent.
Body hook, end curl, overlap and tightness are related seam-integrity terms, so an incoming body check cannot by itself report the completed seam condition. Canadian inspection guidance groups these terms within a broader metal-can integrity assessment. Its scope is food-control guidance, not a beverage-specific test plan, but it usefully reinforces that a single visual feature is not the whole seam result. Review the Canadian metal-can defect terminology.
Review the empty body for visible and recorded forming evidence, then state explicitly that finished-seam measurements remain outside that first check. This approach does not set acceptance criteria. It prevents a buyer from asking an empty-can supplier to certify a completed seam before the specified end and seamer have created one.
| Incoming observation or record | Useful question | Decision boundary |
|---|---|---|
| Current body drawing and revision | Does the lot record identify the geometry being ordered? | Supports body traceability; does not approve an end. |
| Neck profile and flange condition record | Is there a documented result for the formed rim entering the trial? | Supports incoming-body review; does not report final seam overlap. |
| Visible irregularity or unexplained revision | Can the lot be linked to a current technical disposition? | Hold or segregate pending review; do not turn appearance into release. |
| Specified end and filling-line details | Has this exact combination entered a controlled end-system trial? | Moves the project to the second gate. |
Finished-can seam evaluation can require visual examination, teardown and measured seam features, which are different evidence from a body drawing and flange record. FDA inspection guidance describes visual examination, teardown and measurement as parts of double-seam evaluation. U.S. low-acid canned-food rules also name features such as body hook, cover hook, width, tightness and thickness. Both sources are bounded examples from low-acid canned-food operations, not a beverage acceptance schedule or a universal test frequency. Read the FDA’s seam-examination guidance and the cited 21 CFR seam-measurement scope.
A useful handoff therefore has two compact packets. The body-release packet contains the current drawing, the neck-and-flange inspection record, lot identity and any technical disposition. The line-release packet adds the end code, the actual seamer and filler context, the agreed trial plan, and the resulting finished-can evidence. The flange becomes the body hook only after seaming; that is why body release, line release, an end code and finished-can evidence should appear together in one decision path, while remaining separate records.
A lid review is useful only when the current body drawing, end code and intended trial context travel with it. Buyers can review aluminum can lid options with the exact body drawing and end code, then ask a focused question: whether the specified body-and-end combination is ready for a defined trial. Qingdao Baixi Industry (Baixi Cans) can support that format-and-lid conversation, but a product listing does not replace the filler’s final line validation.
Before the first trial, assign ownership for every item in the handoff. The body supplier should be able to identify the manufactured body and its forming record. The end supplier should identify the chosen end. The filler should state the equipment route and decide which finished-can checks apply to that run. If one document names a different drawing, end or line condition, do not fill the gap with a verbal assurance. Mark the mismatch, establish whether the old trial remains relevant, and decide whether a new trial is needed.
In an illustrative 96,000-body lot, identifying a record mismatch before filling keeps the entire affected scope in the empty-body stage. This is a composite decision example, not a Baixi customer case, a reported defect rate or a proposed lot-size rule. Its value is simple: when the issue is found before filling, the team can compare records and decide on the next trial without first creating a finished-can population to investigate.
A nominally similar format does not carry an old trial forward automatically. The same logic applies when teams compare a 500 mL custom can project using its own forming and end-system records: the format page can start a commercial discussion, but the current body and end evidence must still travel together.

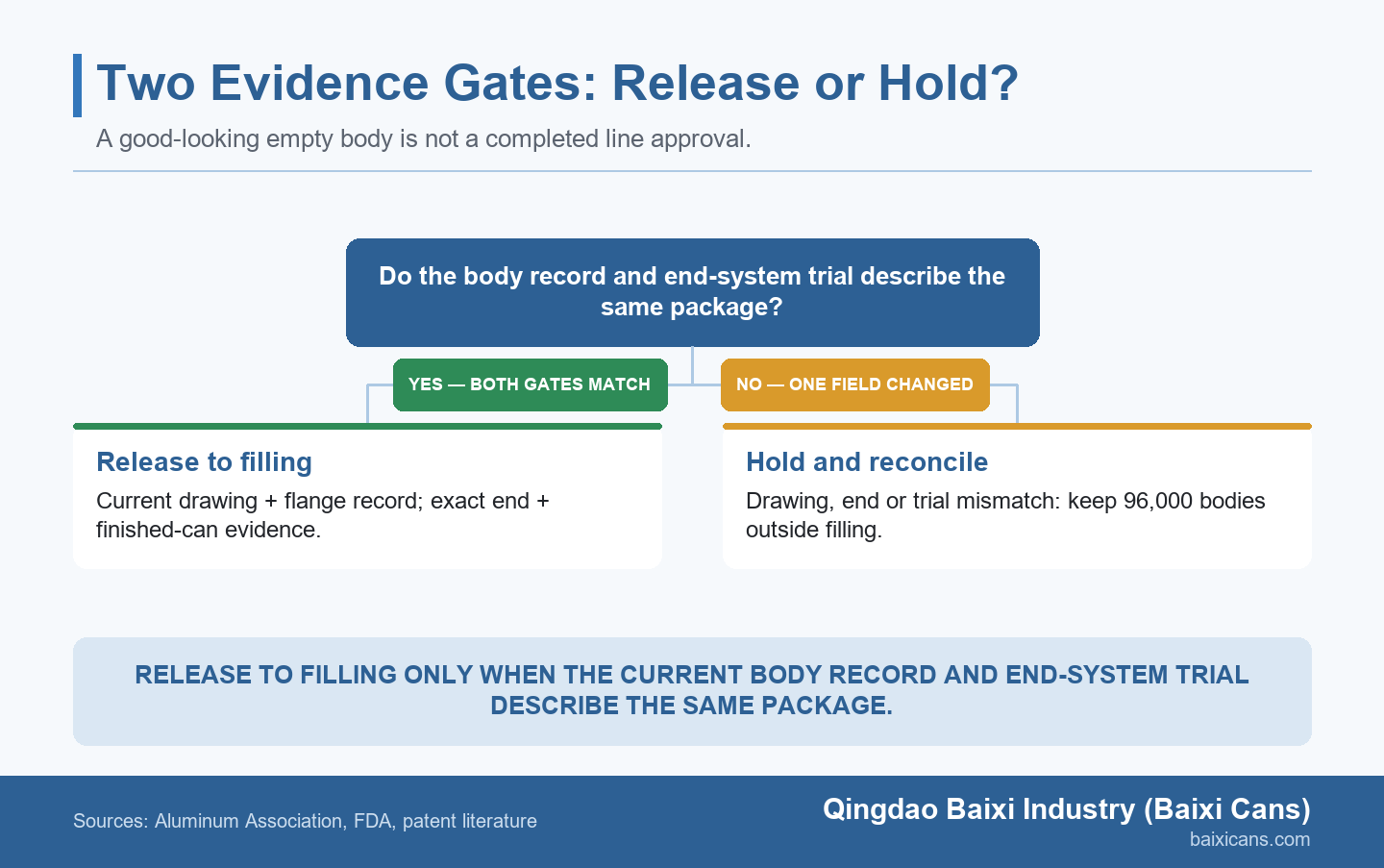

When a body revision and prior trial record do not match, holding the empty-body lot prevents an unsupported assumption from moving into filling. In this illustrative case, a beverage brand and co-packer are preparing an end-system trial for 96,000 empty bodies. The lot carries a revised neck-and-flange inspection record, while the earlier trial note names the same nominal format but does not show the revised drawing, intended end code and current line context together.
Three observations change the decision. The current inspection record carries a drawing reference absent from the older note; the intended end code is available but is not tied to the previous finished-can evidence; and all 96,000 bodies are still outside filling. The old trial may remain useful background, yet it cannot establish that the changed body, specified end and present seamer have been evaluated as one package.
The practical action is to segregate the lot, record the change, confirm the intended end and run the relevant controlled trial with the current inputs. That is a hold-and-reconcile decision, not a claim that the bodies are defective. It protects the team from carrying a prior result into a different evidence set simply because the cans look familiar.
The verification gate is also narrow: the release record needs the current body drawing, neck-and-flange result, end code, line trial context and resulting finished-can evidence. Release only when the responsible teams accept that current record under their own controls. This example uses 96,000 bodies to illustrate containment scale only; it does not prescribe test quantities, quality limits or a production-release method.

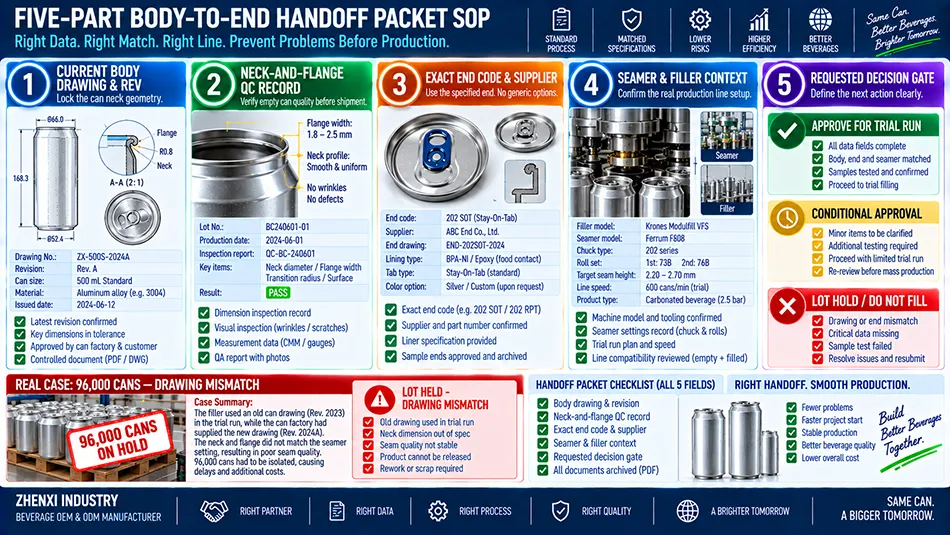

A useful review request names the current body drawing, neck-and-flange records, end identifier, line context and the decision the buyer wants returned. That packet gives a can supplier, end supplier and filler a common basis for review. It also makes a limitation visible: a request for “a compatible lid” is too broad unless it identifies the body and the trial it is meant to support.
| Send this | Why it belongs in the packet | Decision it supports |
|---|---|---|
| Current body drawing and revision | Anchors the neck profile and flange geometry being discussed. | Whether the body record is current. |
| Neck-and-flange inspection record and lot identity | Shows which empty bodies will enter the trial. | Whether a changed lot needs a hold or disposition. |
| Exact end code and supplier details | Stops a generic lid category from standing in for the chosen end. | Whether the intended interface is specified. |
| Filler, seamer and trial context | Defines the actual route that will create the finished seam. | Whether an existing trial is still representative. |
| Requested decision | States whether the team needs format review, trial scope or a hold decision. | Who owns the next action. |
Once those fields are assembled, teams can map the body-and-end handoff into a packaging service discussion. The aim is a defined review of the package route, not an informal promise that an empty can will run on every line. This keeps supplier communication practical while preserving the filler’s responsibility for the final line and finished-can decision.
Keep the requested answer as precise as the records. A buyer may need a format comparison, confirmation that a drawing revision has been received, a recommendation for a controlled trial, or a decision to keep a lot on hold. Those are different requests with different owners. Naming the requested answer helps avoid an open-ended “approval” that no one can support. It also gives the filler a clear point at which its own final package checks begin, after the empty-body handoff has been understood.
For a product-specific packaging review, Qingdao Baixi Industry (Baixi Cans) can use this packet to discuss available formats and next steps. When the drawing, end code and trial context are ready, a buyer can send the body drawing, end code and trial context for a product-specific packaging review.
Necking is the controlled reduction of a can body’s open-end diameter so that it can be paired with the intended smaller end system. It changes the body near the opening, not the entire can diameter. The exact geometry and forming route remain specific to the body design and intended end. For procurement, the useful next step is to keep the current body drawing with the end code instead of relying on a general description of a “reduced top.”
Flanging turns the terminal rim outward to create the body-side material that will be formed into a body hook during seaming. Its downstream role is why a flange should be assessed as more than a clean-looking edge. An empty-body check can review the formed rim and its record, but the final body hook and other completed seam features can only be evaluated after the specified end has been seamed onto the filled can.
No; a necked body still needs to be matched to the specified end, drawing, seamer tooling, filler conditions and approval process. A shared can category or nominal end size is not enough evidence for a universal compatibility conclusion. Use the body-release packet to define the incoming geometry, then use the line-release packet to confirm whether the chosen end and actual seam process have been evaluated together.
Send the body drawing, neck and flange inspection results, end identifier, line conditions, sample plan and the exact release decision requested. Add lot identity and any revision or disposition note so the team can tell whether an earlier result still represents the current bodies. The purpose is not to create unnecessary paperwork; it is to make sure that the body, end and finished-can evidence all refer to the same package route.
