A very thin aluminum can is not a small pressure vessel that happens to survive because the metal is “thick enough.” It is a tuned structure. The drawn-and-ironed body, concave dome, end, closure joint, alloy condition, beverage pressure and test limits are designed to work together. Change one of those inputs and the old result may no longer describe the commercial can. For beverage buyers, the useful question is therefore not “what gauge is safe?” but “does the released can system have evidence for the pressure and handling conditions it will actually see?”
A thin aluminum can survives internal pressure as a matched system of formed geometry, metal condition, end and seam, product pressure, and verified tests. The body distributes load around its shell, the base must remain stable against snap-through, and the closure must preserve the finished package. That combination is why a wall-gauge comparison alone cannot establish a commercial release decision.
The Aluminum Association's beverage-can example uses 3004 for the shell and 5182 for the lid, and it notes that cold working can increase aluminum strength. The body carries much of the load through tension around its circumference, while the base must remain stable rather than snapping through. That is why a can can feel light in the hand yet resist a pressurized product when its shape and process are controlled. Its industry standards reference is useful context, not a mandate for every supplier or market.
In practical terms, the buyer should specify a configuration: format and nominal diameter, released base drawing, body and end combination, beverage gas condition, filling temperature, storage route and acceptance tests. A low wall gauge with a well-qualified configuration can be more meaningful than a heavier wall with no matched evidence. Baixi Cans can use those inputs to keep a format discussion tied to the actual package. Once the inputs are named, a team can review a 500ml can format against a defined pressure brief.
The inward-facing bottom is not there merely to make a can stand neatly on a shelf. It turns a potentially vulnerable flat base into a formed shape that can carry load through curvature. Under increasing internal pressure, the dome changes shape slightly. If its stability margin is exceeded, it can snap through into the opposite direction. Dome reversal means a sudden flip of the formed bottom after rising internal load crosses its stability margin. It is a stability event, not simply an indication that the sidewall tore.
An open university study of aluminum beverage cans identifies different bottom geometries as strongly influential in dome reversal. In buyer terms, the base drawing is therefore a structural control document: a changed depth, radius or shoulder can change the behavior being validated, even when the nominal format and product name stay the same.
The open academic record concerns aluminum beverage-can bottom reversal, while a published dome-profile record describes base-profile influence on that instability. Their value is the mechanism, not a ready-made production drawing: a different alloy, formed thickness distribution, base tool or pressure profile can change the outcome. A buyer should therefore treat the base drawing as a controlled structural document rather than an interchangeable cosmetic detail.
The dome also gives engineers a controlled pressure response rather than allowing the bottom to behave like an unconstrained flat panel. That does not make a visible outward base universally acceptable or universally unacceptable. The relevant question is whether the observed state is within the product's defined acceptance criteria and whether it is accompanied by evidence of a process, pressure, transport or design change. For a new program, retain the released drawing revision beside each pressure record; a report without the base profile is incomplete evidence.

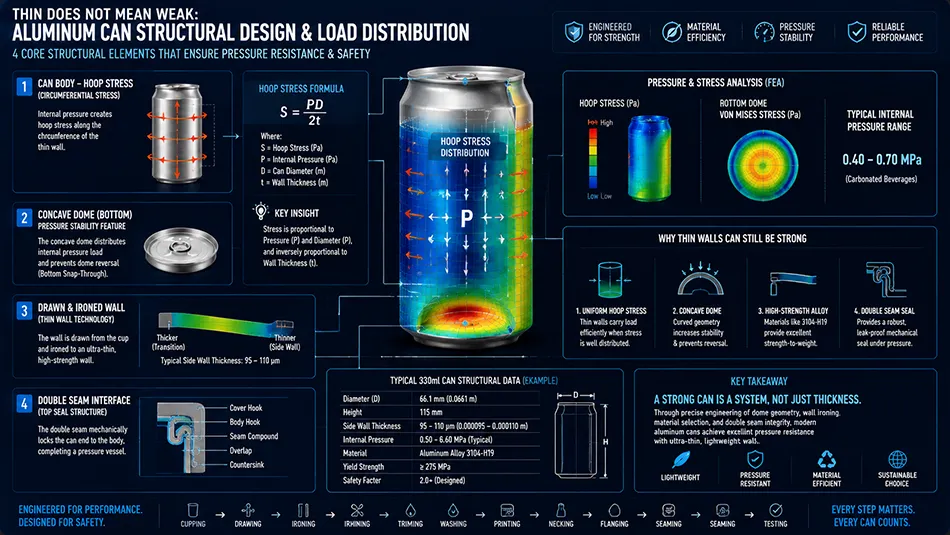

A NASA failure analysis applies P = 2St/D to aluminum tubing, defining pressure P, allowable stress S, wall thickness t and diameter D. The relationship is useful for screening how diameter, thickness and load interact, but it cannot represent every formed feature of a beverage can or turn a test setting into an approved operating limit.
Rearranged, the relation is often written as S = PD/(2t): stress rises with pressure and diameter, and it falls as thickness increases. It is a helpful first-pass lens for asking why a larger diameter or a thinner wall needs careful engineering. It is not a beverage-can release calculation. A real can has a formed dome, neck, end, seam, work-hardened material, coatings and a product whose pressure can vary with temperature. The NASA failure analysis reports distinct test and expected operating pressures for its specific tubing case. That illustrates why a test setting cannot be substituted for a beverage can's approved operating or release condition.
“Thin” is meaningful only when the measurement location and formed condition are known. The body is created through drawing and ironing, while the bottom is formed into a dome. The original coil gauge, the sidewall measurement and the local thickness near a formed transition are not automatically the same number. Alloy chemistry, temper and the cold work accumulated during forming also influence how the metal responds.
One axial-load study modelled and tested a beverage can with a 95 μm aluminum wall and a 5 μm internal varnish layer. Those dimensions make a useful research example because they show how thin a tested shell can be, yet they say nothing by themselves about a different diameter, alloy, base profile, beverage or transport route.
The axial-load research article provides a concrete research model, not a purchase specification. It does not say that every 95 μm wall suits every beverage, format, base design or distribution route. Treat a number like this as a prompt to ask what was tested: the can dimensions, varnish, geometry, load path, sample condition and failure criterion.
The formed dome changes material distribution and curvature, so input-strip gauge alone cannot describe the pressure system. A responsible change review follows the finished can through drawing, tooling, sample identity and the agreed mechanical checks instead of assuming the incoming strip target predicts every local response.
This is why a nominal material reduction deserves engineering change control. Before approving it, ask whether it modifies only an input-strip target or also the final base geometry, local material distribution and test performance. The latter is a new configuration, not a paperwork update. The practical record should identify the drawing revision and the representative tool, then demonstrate the agreed pressure and load performance for that version.
The can end and double seam complete the pressure package, so a body-only report cannot establish the performance of the sealed container. A double seam is the folded mechanical joint that joins a can end to its body; it must be reviewed with the end specification and the actual seaming process, not treated as an afterthought.
This closure interface must be considered alongside the shell and dome. The end has its own material, forming features and opening panel; the seam has its own dimensional and process controls. A pressure test of an open body can inform one structural question, but it cannot prove the behavior of a filled, seamed commercial package.
Keep the evidence chain coherent: body drawing, end specification, seam-control record, lining or coating boundary where relevant, and the product condition represented in the test. This also prevents a common sourcing error—selecting a can body and an end as though they are independently qualified components. After the body configuration is clear, buyers can compare can-end options with the released body specification.

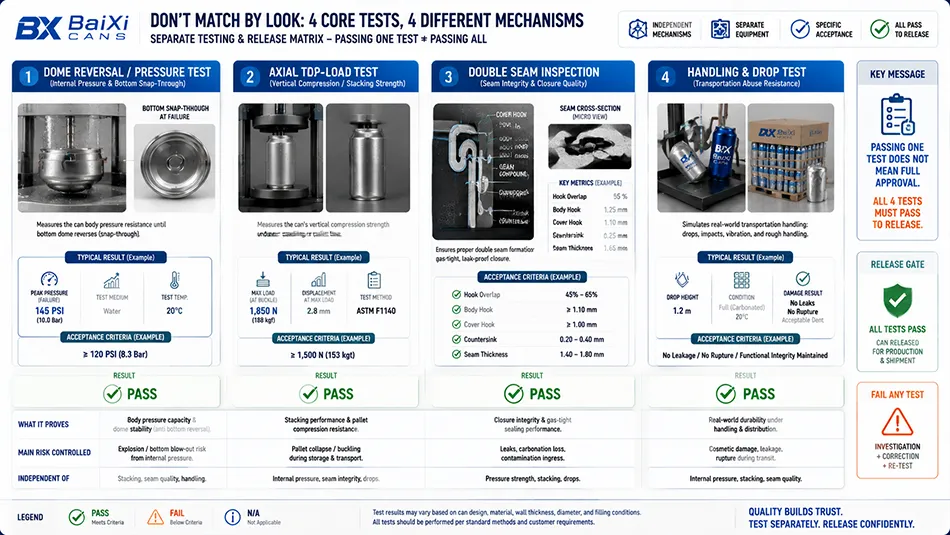

A pressure result, an axial top-load result and a handling result answer different questions. Axial top load means the vertical compression force applied through the can height. That definition matters because a vertical stacking question is not the same as a bottom-stability question.
That separation is useful because “passed the can test” does not say what passed. Do not convert a single result into a universal buyer requirement: the can format, beverage pressure, temperature, method, sample conditioning and acceptance rule must all be stated.
| Check | What it answers | What it does not establish | Typical change trigger |
|---|---|---|---|
| Dome-reversal or pressure test | Whether the stated base and package withstand the defined internal-pressure condition. | Stacking performance, seam quality or transport abuse by itself. | Base profile, body material, gas condition or filling-temperature change. |
| Axial top load | How the can resists vertical compression through its height. | Its dome-reversal threshold or a complete drop-performance result. | Body geometry, neck, end, pallet pattern or stacking condition change. |
| End and seam inspection | Whether the closure control matches the released component and process. | Body buckle resistance under every pressure condition. | End supplier, seaming setup or lid specification change. |
| Handling or drop evaluation | Response to the agreed handling event and sample condition. | All pressure and top-load requirements. | Distribution route, secondary pack or product-weight change. |
ASTM records a journal article specifically examining the effect of internal gas pressure on compression strength of beverage cans and plastic bottles. The topic itself is a useful reminder that gas load and vertical compression can interact in a package system, while each still needs its own method, samples and release limit.
The ASTM publication record supports the relevance of that interaction, but its public page does not supply a universal acceptance number. A useful report should therefore identify the method, conditioning, sample count, configuration, product condition, measured result and pass or fail limit. This allows a buyer to see whether pressure evidence, compression evidence and closure evidence refer to one product rather than a collection of unrelated tests.

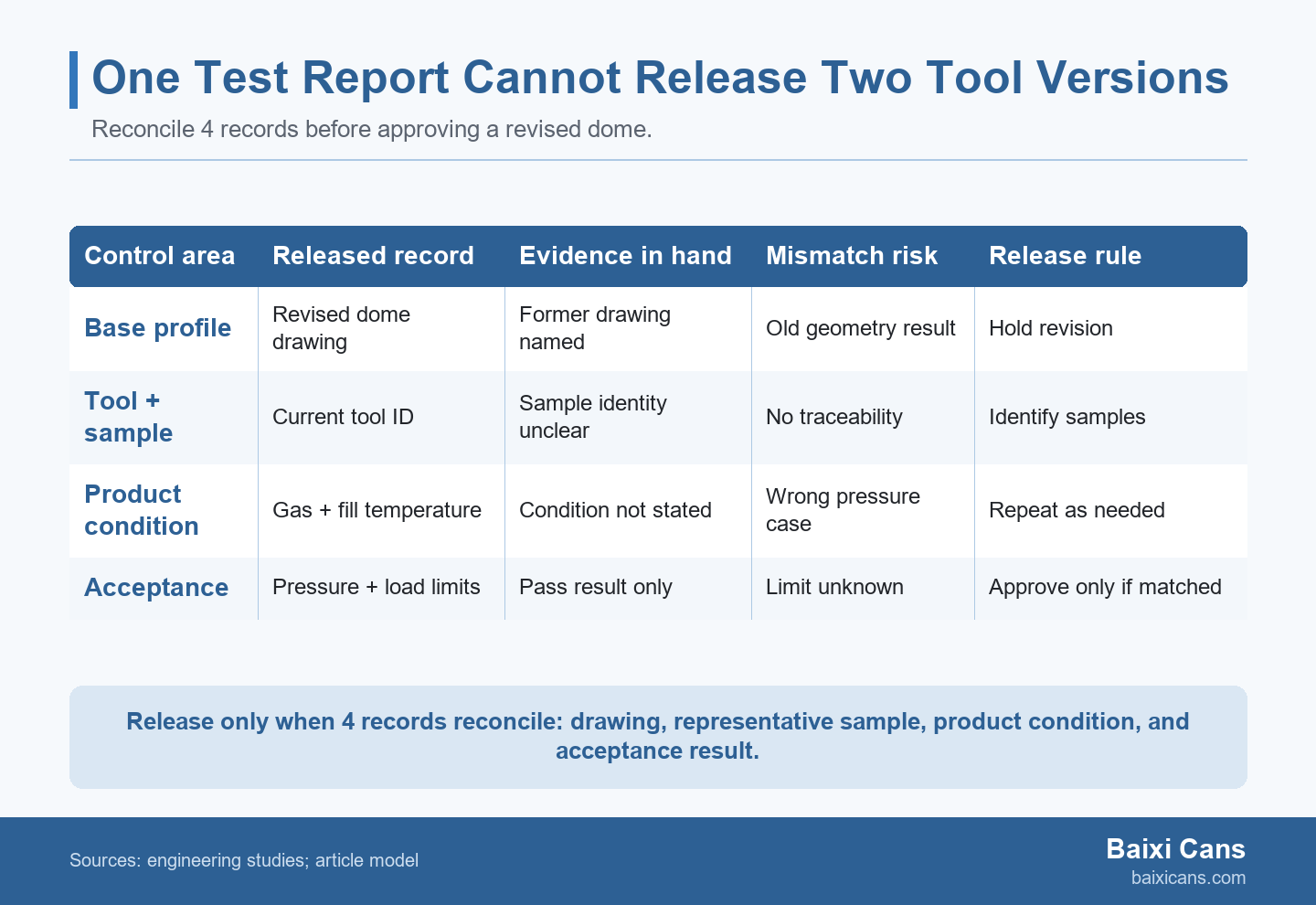

A pressure report for a former base drawing cannot release a revised dome profile when the tool and product condition are not matched. The problem is traceability, not a presumption that the new dome will fail: the prior result may be useful historical information, but it does not identify the item now awaiting approval.
Consider an illustrative composite case. A buyer is not deciding whether thin cans are generally strong; the buyer is deciding whether a specific revision can be released without creating an evidence gap. The practical advantage of this approach is that it protects the unchanged product while keeping the changed design on a clear, short validation path.
Release a revised can only when the drawing, sample identity, pressure condition, load condition, method, result and acceptance limit reconcile. This gate lets the buyer release the unaffected SKU on its valid record while keeping the revised dome on a focused evidence path, rather than delaying every can in the order.
A beverage brand is approving a 330 mL carbonated energy drink can and wants to reduce metal use without weakening its release evidence.
The first production order is 120000 units across 2 commercial 330 mL SKUs, and the supplier proposes a revised base profile for 1 SKU.
The supplier has a pressure report, but it references the former base drawing and does not identify the revised tool or product condition.
The report identifies the former base geometry rather than the revised profile.
The report does not tie the samples to the final beverage pressure and filling-temperature condition.
The report can support only the version it identifies. A base-profile change is relevant because dome geometry affects reversal behavior, and the missing drawing-to-test traceability means the buyer cannot assume the old result applies to the revision. The buyer should not reject the whole order by default: one unchanged SKU may remain traceable to its existing evidence, while the revised base profile has a document-version gap.
Hold release of the revised base profile while allowing the unchanged SKU to proceed under its existing matched records. This split decision protects the order schedule without transferring an old report to a new tool revision.
Issue the revised drawing and tool identity, produce representative samples, and run the agreed pressure and axial-load checks with the stated product condition.
Approve the revision only when sample identity, released drawing, test method, pressure condition, axial-load condition, result and acceptance limit all reconcile.
This is an illustrative composite procurement scenario, not a Baixi Cans customer outcome or a prediction for any 330 mL can.

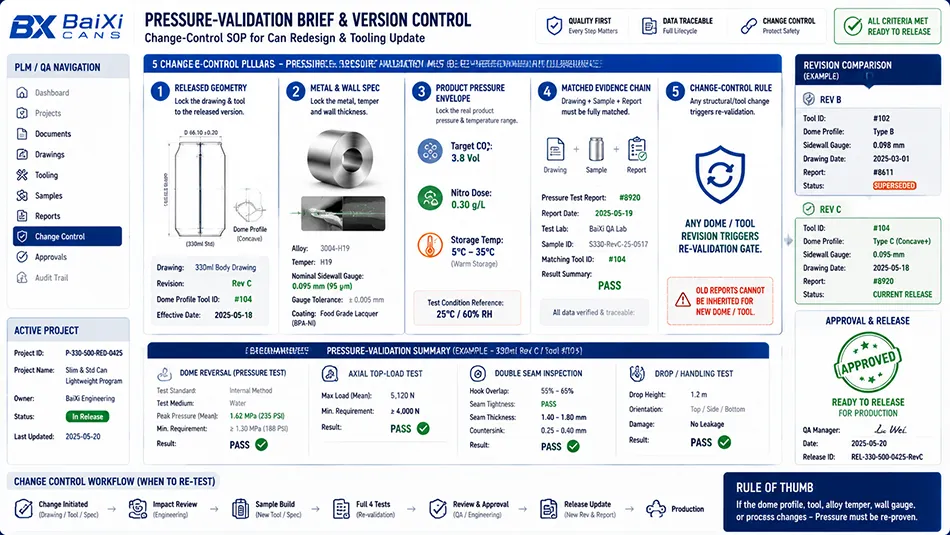

A pressure-validation brief should align released geometry, metal condition, pressure envelope and matched test records before metal savings are approved. It gives engineering, procurement and quality teams a shared request that is specific enough to test and audit, while leaving the actual acceptance values to the released product and market requirements.
Start with the released geometry: can format, body diameter, height, base drawing revision, end specification and tool identity. Next state the metal condition that is actually being ordered and formed, including the controlled gauge or thickness measures that matter to the configuration. Then describe the product pressure envelope rather than a generic “carbonated” label: beverage type, carbonation or nitrogen condition, headspace or fill condition, filling temperature, foreseeable storage temperature and any process exposure that changes the pressure case.
Finally, list the evidence that must match that configuration. Name the required pressure test, axial top-load test, end or seam checks and handling evaluation; give the method, sample identity, condition and acceptance limit for each. A result without its drawing revision is difficult to audit. Likewise, a drawing without the product condition does not tell an engineering team what pressure case it represents. Before release, buyers can review relevant quality documentation before approving the configuration.
Use a change-control line in the brief as well. It should state what happens if the base drawing, tool, body metal, end, beverage gas condition, fill temperature or logistics route changes after sampling. The rule does not need to declare that every change invalidates every record. Instead, it should identify the affected configuration, preserve records for unchanged versions and name the revalidation needed for the changed version. This is especially useful when production includes several formats or SKUs. It stops a team from making two opposite errors: treating a small document correction as though it invalidates the entire order, or treating a structural revision as though the existing report automatically follows it. The same discipline improves supplier communication. A buyer can send one concise package that identifies the target can, the exact revision and the commercial product condition. The supplier can then confirm whether existing test evidence applies, what representative samples are needed, and which release checks still need to be completed. The result is a faster, more auditable decision than a request for a generic “stronger can.” It also keeps later release decisions traceable.
Baixi Cans can use this brief to focus a technical discussion on the actual can body and end combination rather than make a blanket pressure promise. Include the intended beverage, gas condition, fill temperature, format, base revision, end, route and decision date. That creates a usable starting point for tooling, sampling and documentation review. When those inputs are ready, send a pressure-validation brief for a packaging review.
No; wall thickness matters, but the formed dome, alloy condition, can diameter, end, seam, and accepted test mode also determine the result. A thickness increase can change one part of the structure without proving the final package meets its pressure, axial-load or handling target. Buyers should compare the same released configuration and inspect the relevant test record, rather than rank cans only by a nominal gauge.
The event is the sudden flip of the formed bottom when internal load exceeds its stability margin in a sealed package. It is associated with base geometry and the product state, not simply with whether the sidewall feels thin. A visible bottom change should be assessed against the product's acceptance criteria, test history and any recent design or process revision.
No; dome reversal answers a bottom-pressure question, while axial load, end or seam integrity, handling, and product-specific pressure conditions require their own evidence. A well-written release plan identifies the purpose and limit for each check. It also ties all samples to the same drawing, tooling and product condition so one successful test is not overstretched into a complete package approval.
Revalidate when a change can alter the released pressure system, including base profile, body gauge, metal condition, end, fill profile, or relevant distribution temperature. The scope does not always need to be a full-line hold: if the changed population is traceable, unchanged configurations may retain their valid evidence. The revised configuration needs representative samples and records that match the new release state.
