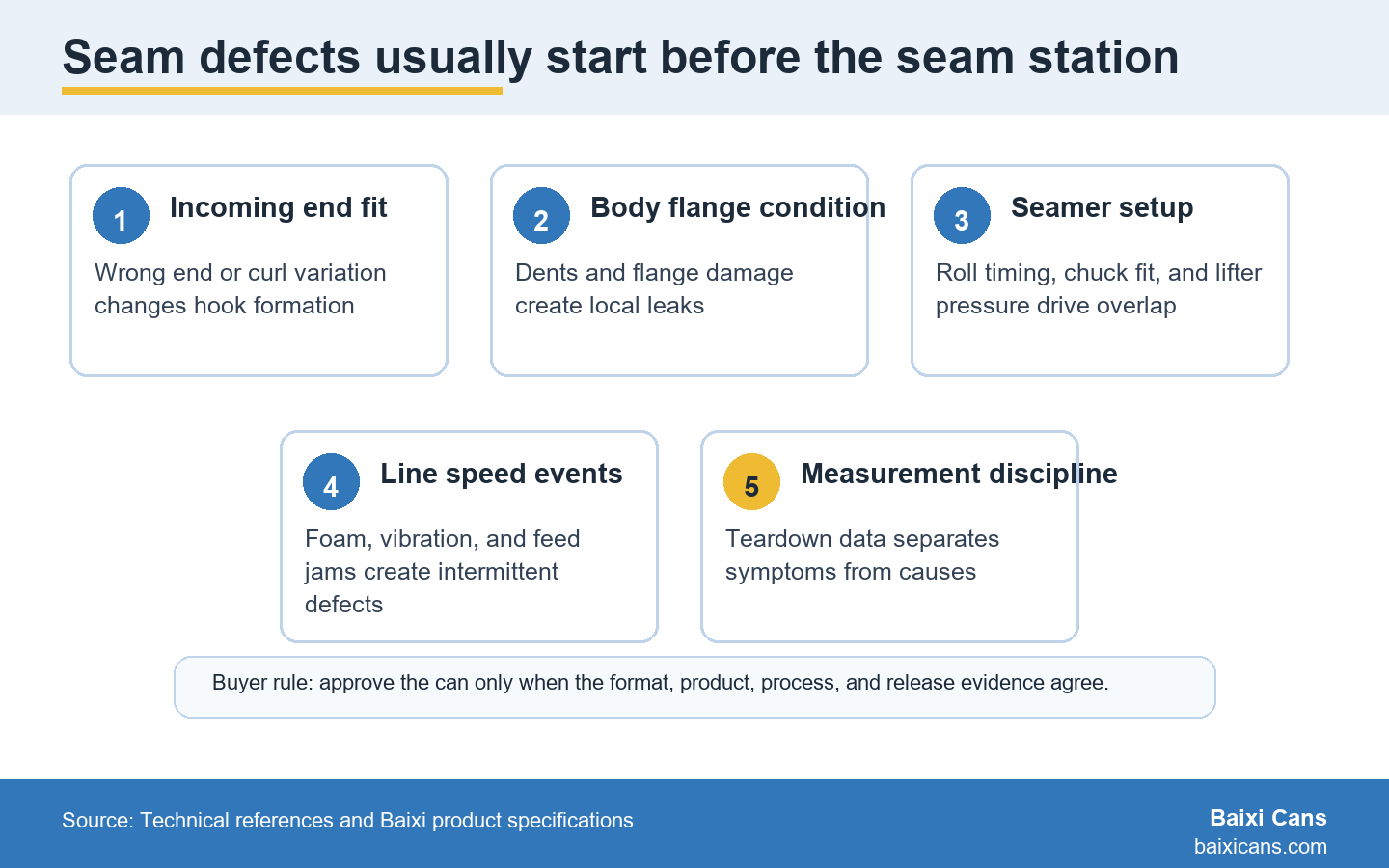

Most high-speed can seaming problems are not solved at the seamer alone, because the defect often begins upstream in end fit, body flange condition, foam behavior, changeover discipline, or measurement delay. The seamer is the place where the problem becomes visible; it is rarely the only place where the problem is created.
That distinction matters on fast beverage lines. When the line is running well, thousands of cans can pass before a small setup drift becomes obvious. When the line is unstable, a false seam, droop, cutover, wrinkle, or micro-leak can turn from a quality alert into a hold decision. The AFDO guide to can defects and double seam components and CFIA can defect guidance both treat seam conditions as package-integrity issues, not cosmetic annoyances.
The first troubleshooting question is not "which roll should we adjust"; it is "what evidence proves this is a roll problem rather than an end, flange, chuck, lifter, or line-speed problem?"
Fast corrective action feels efficient, but blind adjustment can erase the evidence trail. If a defect appears after a lid lot change, a body supplier change, a new can height, or a line speed increase, the seamer setting may only be revealing a mismatch created elsewhere. Record the time, seaming head, lane, product temperature, end lot, can lot, and defect type before making any mechanical correction.

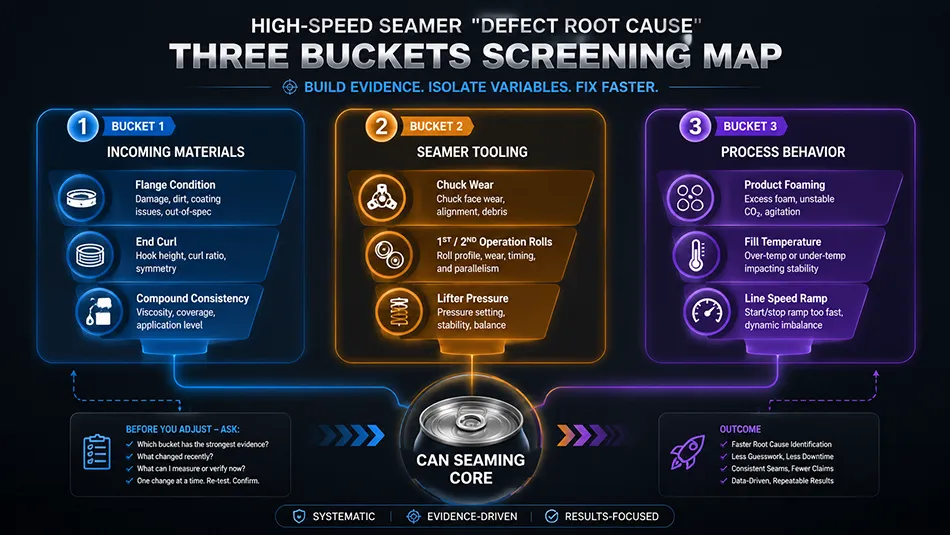

A useful first screen uses three buckets. Bucket one is incoming material: can body flange, end curl, compound, diameter, and lot consistency. Bucket two is seamer condition: chuck wear, first-operation roll, second-operation roll, lifter pressure, timing, and lubrication. Bucket three is process behavior: foam, fill height, temperature, feed stability, lid feed, and conveyor vibration. The same visible defect can travel through any of these buckets.

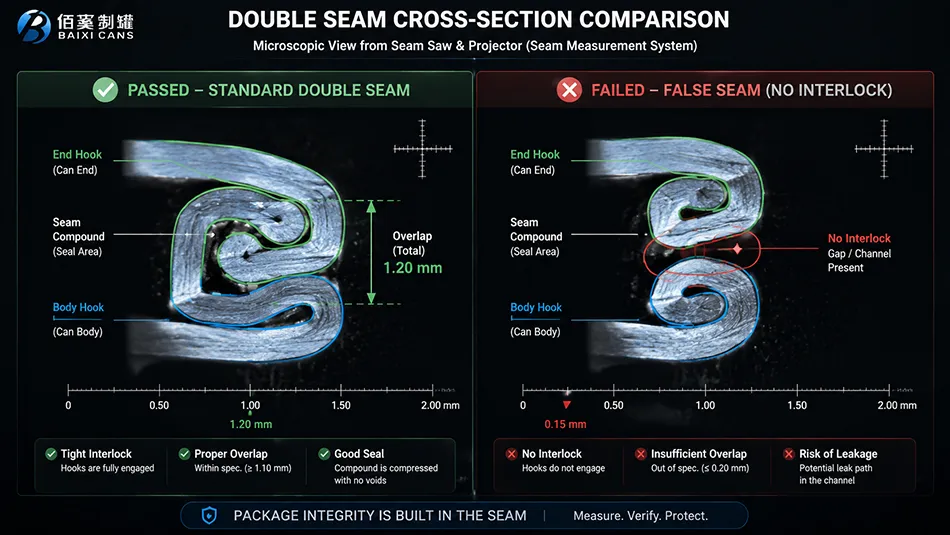

Seam vocabulary matters because the wrong word can send maintenance to the wrong component. A false seam means the body flange and end hook have not interlocked properly. A droop is a local projection of the seam below the normal seam line. A cutover indicates excessive pressure or geometry that has thinned or cut the metal. Wrinkles indicate incomplete ironing or loose seam formation. A spinner may look sealed but fails under handling or pressure.
These terms are not just plant shorthand. They are part of a release decision. The USDA's canning guidance and AFDO defect guide both show that seam evaluation depends on the relationship among seam thickness, width, cover hook, body hook, overlap, and tightness. If your troubleshooting log says only "bad seam," you do not have enough information to choose a corrective path.
| Visible symptom | Likely investigation path | Do not assume |
|---|---|---|
| False seam | Check end feed, body flange, chuck engagement, and first-operation setup. | That more second-operation pressure will fix the interlock. |
| Droop or vee | Inspect localized flange damage, end curl, product in seam area, and head-specific pattern. | That every can in the lot has the same severity. |
| Cutover | Review roll pressure, chuck profile, end hardness, and over-tight second operation. | That a tighter seam is always safer. |
| Wrinkles | Measure tightness and overlap, then compare by head and end lot. | That wrinkles are cosmetic when product pressure is high. |
| Micro-leak | Combine seam teardown with pressure, vacuum, dye, or incubation evidence. | That visual inspection alone can release the lot. |
At low speed, an operator may see the moment a lid misfeeds or a can arrives dented. At high speed, the event may pass before the visible defect is noticed. That is why the defect pattern matters as much as the defect type. A defect tied to one seaming head points in a different direction from a defect tied to one end lot, one body diameter, or one moment after a speed ramp.
Use time slices. Pull samples before the defect window, inside the defect window, and after the corrective action. Then classify by seaming head and material lot. If defects cluster around one head, prioritize chuck, roll, lifter, and tooling condition. If defects cluster around one material lot, inspect can flange and end curl dimensions. If defects cluster after foam spikes, investigate fill temperature, carbonation, headspace, product carryover, and cover placement.
An illustrative scenario shows the cost of waiting. A line running 60,000 cans per hour produces 1,000 cans per minute. If the team waits 12 minutes to move from visual alarm to quarantine boundary, up to 12,000 cans may need a hold decision. Even if only a fraction are defective, the investigation burden becomes much larger than the original mechanical issue. This is why high-speed troubleshooting needs a stop, sample, and segregate rule before the shift begins.

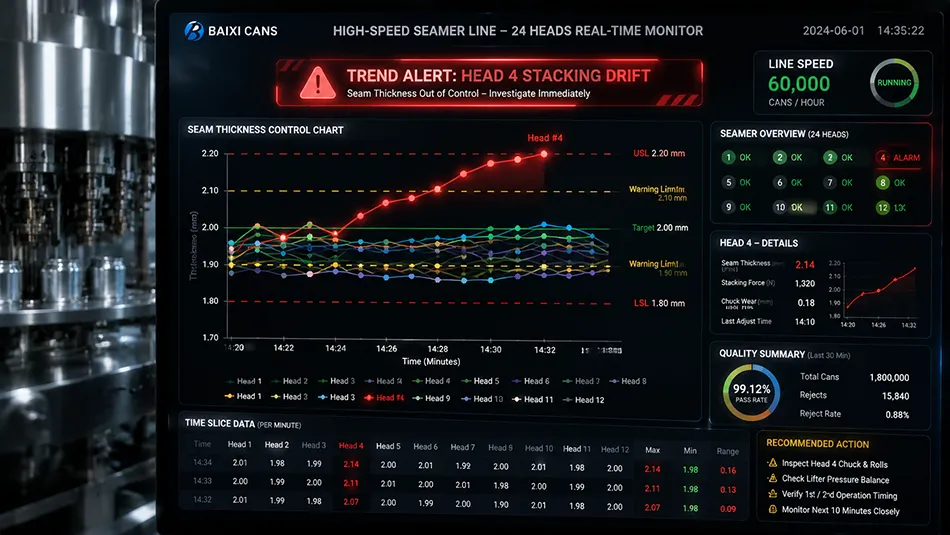

The same logic applies when the first alarm is only a trend, not a visible failure. A seam thickness drift, a tightening trend, or a small rise in wrinkle count can be more valuable than one dramatic bad can because it tells the team where the process is moving. If the drift appears on one head for ten minutes, maintenance has a focused mechanical target. If the drift appears across all heads after a temperature change, operations should investigate product condition, lid feed, or line speed before blaming a single tool.
For a buyer reviewing a co-packer's production report, ask whether the report includes trend evidence or only pass/fail snapshots. Pass/fail data tells you whether the sampled cans met the limit at that moment. Trend data tells you whether the process was approaching the limit before the alarm. On high-speed lines, that difference can decide whether a lot is released confidently, rechecked with a tighter sample plan, or held until the plant proves the defect window is smaller.
Many seam problems look like machine drift, but the root cause is a body-end-tooling mismatch introduced during a format change.
When a plant moves between 200, 202, and 206 ends, or between standard, sleek, and slim can bodies, the seamer does not only need a label update. It needs verified tooling, end feed, chuck fit, lifter height, seam dimensions, and teardown acceptance. KHS's seaming discussion emphasizes that reliable can closure depends on precise interaction among the can, end, seamer, and production process; that interaction is exactly what a fast changeover can disturb.
For buyers, this means end selection should be finalized with the can supplier and filling partner before mass production. Baixi Cans' aluminum can lids page lists 200, 202, and 206 diameter options, SOT and RPT ends, plus customization choices. Those options are useful, but every option creates a seamer-compatibility question. The right procurement move is to match the chosen end to the filling line's chuck and roll tooling early, not to fix the issue after the first production hold.
Not every seam observation requires the same response. A catastrophic false seam, sharp cutover, active leak, or food-safety critical defect should stop the line and quarantine affected production. A minor dimension drift near warning limits may require increased sampling and immediate adjustment. A cosmetic mark with stable teardown data may be monitored if it does not affect package integrity. The point is to define the rule before the pressure of production starts.
A useful release rule has four layers: visual defect severity, teardown measurement, leak or pressure evidence, and lot boundary. If any layer is missing, the release decision becomes opinion. If all layers agree, the team can act quickly without arguing over whether the seamer "looks fine."
For export buyers, ask your filling partner for the seam control plan before the order is filled. The plan should name sampling frequency, teardown dimensions, hold criteria, escalation steps, and who approves release. If the order uses custom printed cans or a new lid, increase the first-run sampling frequency because the first commercial run is where material, tooling, and artwork handling assumptions meet.
Baixi Cans is not the filler operating your seamer, so it should not be represented as controlling every line variable. Its role is upstream and practical: supply can bodies and lids with clear specifications, support format selection, and help buyers match can and end choices to the filling partner's equipment. According to company materials, Baixi Industry supplies aluminum cans and lids across standard, sleek, slim, and other beverage formats, with custom printing and blank-can options.
This matters when the defect report is ambiguous. If a plant reports seam issues after switching from one can format to another, the buyer should gather the end lot, can lot, seam measurements, photos, head number, and sample cans before blaming either the line or the packaging. Baixi Cans can then help compare the ordered body and lid specification against the reported filling-line requirements. That is a buyer-side evidence loop, not a promise that a supplier can diagnose every plant fault remotely.
Before sending a complaint or asking for replacement stock, assemble a packet that a supplier, filler, and maintenance team can all read. Include photos of the defect, teardown data, seaming head number, can body specification, lid specification, lot numbers, production time window, line speed, fill height, product temperature, carbonation or pressure condition, and the corrective actions already tried. Add retained samples from before and after the event.
If the issue appears after a new can or lid order, send the packet to Baixi Cans with the PO, format, lid diameter, failed report, and filling-line model so the team can check the supplied specification against the seamer requirement. For a new run or repeated hold, use Baixi's service process page to align OEM and packaging details before production, then confirm whether the order needs a different lid, body format, sample test, or filling-line verification step.
The fastest reliable method is to classify the defect, record the time window, and compare teardown data by seaming head, material lot, and process condition. This prevents maintenance from adjusting the machine before proving whether the issue came from tooling, can body, end, or line behavior.
Yes, a seam can look acceptable and still leak if overlap, tightness, compound compression, or microscopic damage is outside the safe range. Visual inspection should be paired with teardown and leak or pressure evidence when the product has meaningful shelf-life or pressure risk.
Lid changes may require tooling or setup verification when diameter, end profile, compound, or pull-tab style changes. Even when the same nominal diameter is used, first-run checks should confirm chuck fit, roll setup, and finished seam dimensions.
The quarantine boundary should cover production since the last verified good sample, plus any cans produced during diagnosis and correction. On high-speed lines, even a few minutes can represent thousands of cans, so sampling frequency directly affects hold volume.
Ownership depends on evidence, not assumption: material defects point toward the supplier, setup or maintenance drift points toward the filler, and compatibility gaps may involve both. A useful investigation packet lets each party verify its part without relying on blame.
