Conductivity testing is critical for aluminum can coating integrity because it turns invisible metal exposure into a measurable signal before the beverage turns that exposure into corrosion, flavor change, metal pickup, leakage, or shelf-life failure. A can can look clean, printed, and dimensionally correct while still having coating porosity that only an electrical test reveals.
The method is often called enamel rating, metal exposure testing, mA testing, or porosity testing. Smithers describes enamel rating as a standard industry test using conductive electrolyte and current flow to indicate metal exposure. Sencon's enamel rating guide explains the same principle: if the internal coating has weaknesses, the electrolyte can complete an electrical circuit and the gauge measures current in milliamps.
Conductivity testing does not measure coating beauty; it measures whether the coating still blocks electrical contact between the beverage side and the metal substrate.

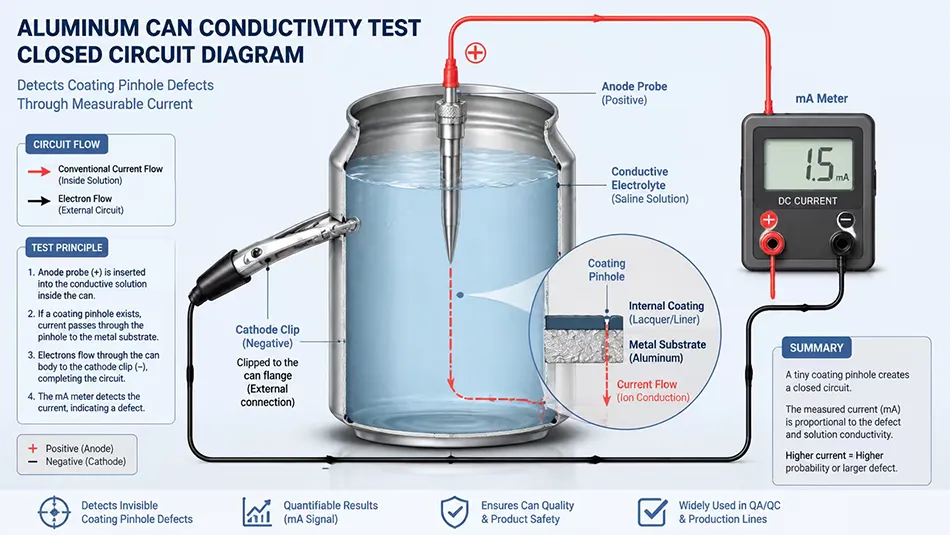

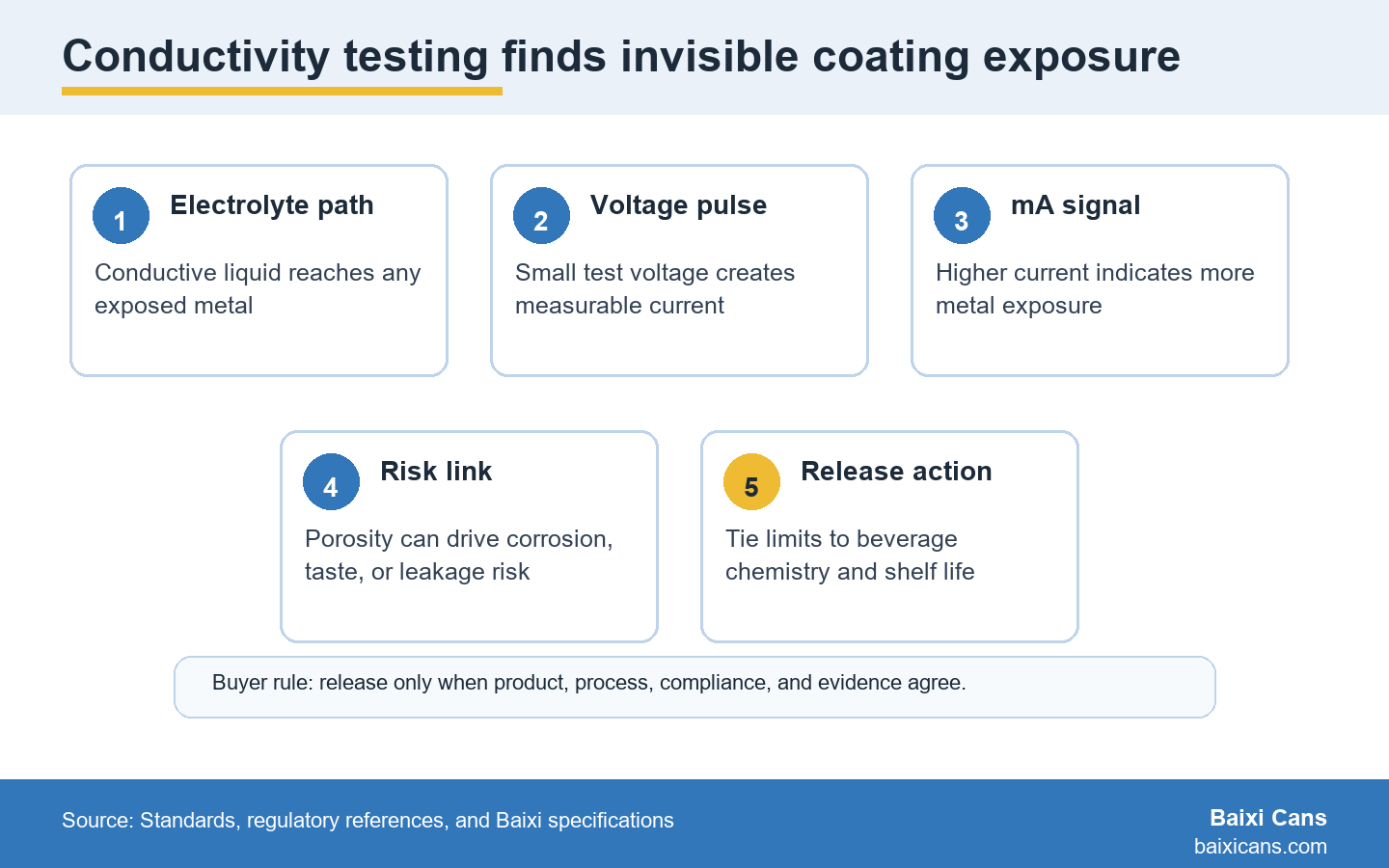

The test is mechanically simple but technically powerful. The can is filled with a conductive electrolyte, often a saline solution. A probe contacts the electrolyte, and exterior contacts connect to the metal substrate. A small voltage is applied for a defined period. If the internal coating is continuous and non-conductive, little current flows. If there is exposed metal, porosity, a scratch, or a thin spot, current can pass and the instrument reports a milliamp reading.
Industrial Physics' beverage can enamel rating equipment describes measurement of lacquer integrity for metal beverage cans, with current measurement ranges and data traceability features. The exact instrument is less important than the control logic: every reading must be tied to a sample, a lot, a can area, and an acceptance limit. Otherwise, the number is hard to use in a release decision.
For buyers, the key question is not "was conductivity tested?" It is "what did the test represent?" A reading from the can body alone does not prove the end. A reading from a benign beverage format does not automatically protect an acidic energy drink. A low reading without sample size and test setup is not enough for a strict market or long shelf life.

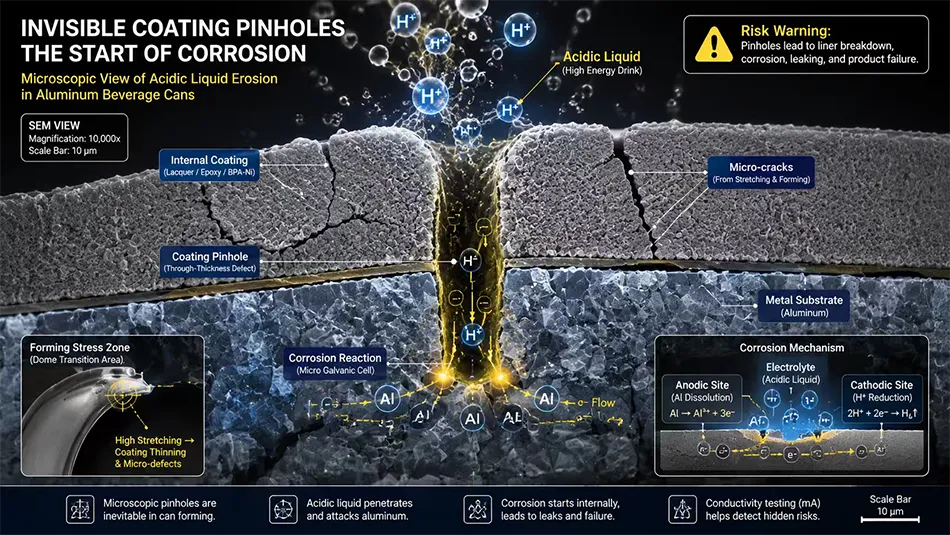

Visual inspection is still necessary because dents, scratches, contamination, and print defects are visible release concerns. But coating porosity can be too small or too location-specific to see reliably. A coating may look continuous under normal lighting while still allowing electrolyte to contact metal at a formed area, score area, dome transition, or seam-adjacent surface.
That is why conductivity testing is valuable as a screening tool. It is fast enough to be part of production quality control and sensitive enough to identify metal exposure that could become corrosion under the right beverage chemistry. It does not prove shelf life by itself, but it prevents the buyer from relying only on appearance.
An illustrative risk model helps. Suppose one lot contains a small population of cans with coating pinholes concentrated near a forming transition. Visual inspection may catch none because the surface looks normal. Conductivity testing may flag the elevated mA readings. If the product is a low-acid still beverage, the risk may be handled with defined limits. If the product is a highly acidic functional drink, the same signal may require rejection, retest, or a coating review. The reading changes the decision because chemistry changes the consequence.
The coating test becomes most important when the beverage is most aggressive, because exposed metal is no longer a harmless cosmetic imperfection.
Acidic beverages, energy drinks, flavored alcoholic beverages, salt-containing formulas, and long-shelf-life products can make coating weakness more serious. If product contacts exposed aluminum, the result may be corrosion, metal pickup, off-flavor, gas generation, pressure change, or leakage. Conductivity testing gives the packaging team an early warning before filled-product retention samples reveal the issue months later.
However, the test is not a complete corrosion study. A low mA reading does not automatically prove compatibility with every beverage. It shows that metal exposure under the test condition is controlled. The buyer still needs formula review, coating compatibility, real-time or accelerated retention samples, and destination-market requirements when the product is aggressive.
For Baixi Cans buyers, this is especially relevant when selecting slim cans for energy drinks or flavored beverages. The printable slim 250ml aluminum can may be commercially attractive, but an acidic formula should still be matched to coating evidence and sample testing before printed stock is scaled.

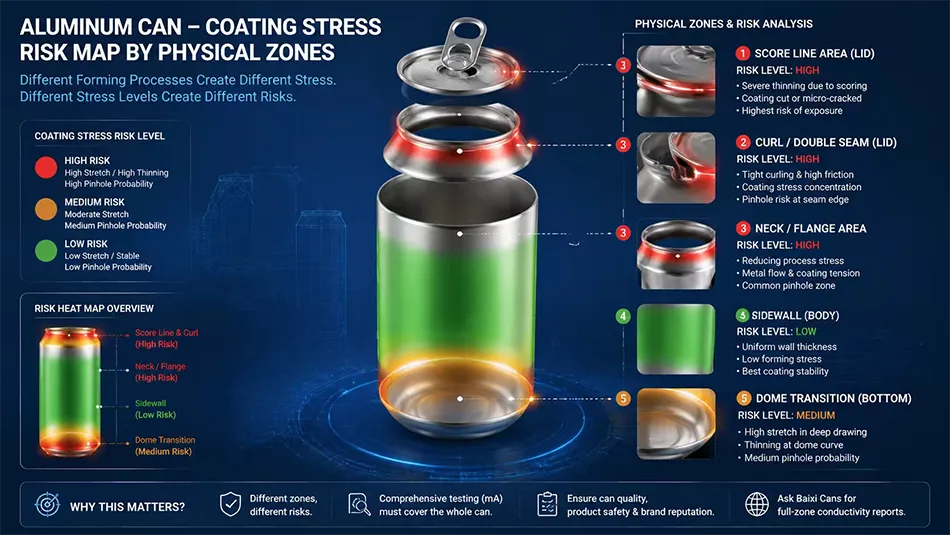

The can body, dome, neck, flange, end panel, score, tab area, and curl are different physical zones. They are formed differently and may experience different coating stresses. If the buyer checks only one area, a risk at another area can remain invisible. Ends are especially important because scores and curls are engineered features, not flat panels.
Baixi Cans' aluminum can lids include multiple diameters and styles, and that makes lid coating evidence part of the same release conversation as body coating evidence. For an acidic or carbonated SKU, the end must be compatible with the body, the beverage, and the seamer. A strong can body does not protect the drink if the end coating is the weak point.
When requesting conductivity data, ask whether the test covers bodies, ends, or both. Ask where samples were taken in the production flow. Ask whether the reading is tied to a specific coating, end supplier, body lot, and product category. That level of detail prevents a generic "coating OK" statement from hiding the actual exposure risk.
| Record field | What it proves | Buyer question |
|---|---|---|
| Test setup | Voltage, time, electrolyte, fill level, contact method. | Can readings be compared across lots? |
| Sample identity | Can lot, end lot, coating system, production time. | Can a failed result be traced? |
| Area tested | Body, dome, end, score, or other surface. | Does the test cover the vulnerable zone? |
| mA limit | Pass/fail threshold tied to product risk. | Is the limit suitable for this beverage chemistry? |
| Corrective action | Retest, hold, adjust, reject, or investigate. | What happens when readings drift? |
The table shows why the reading alone is not enough. A "2 mA" or "10 mA" value has meaning only when the test method, sample identity, and product risk are known.
Conductivity testing is most useful when it catches patterns, not when it produces one reassuring number. A single low reading from a random can may miss a coating weakness tied to a forming station, a washer event, an end lot, a coating batch, or a startup window. The sampling plan should therefore match the way the defect could occur.
For routine production, buyers can ask whether the supplier samples across production time, tooling positions, body lots, and end lots. For a new beverage, new coating, new end, or custom printed order, sampling should be tighter because the process has less history. For high-acid products, the buyer should also ask whether conductivity testing is paired with filled-product retention samples. The electrical test identifies exposure; retention samples show what the actual formula does with that exposure.
An illustrative sampling rule is to treat first-run cans, post-changeover cans, and end-of-run cans as different evidence groups. If all three groups show stable readings, the buyer has a stronger release story than if the report only lists one average result. If one group drifts upward, the buyer can ask whether the drift follows coating cure, tooling heat, cleaning conditions, or material handling. That is how a test number becomes a root-cause tool.
A high or drifting mA reading should not automatically create a blame argument. It should trigger a structured investigation. First, verify the test setup: electrolyte concentration, fill volume, contact position, voltage, timing, and instrument condition. Second, isolate the samples: body lot, end lot, production time, line position, and whether the can was handled after production. Third, inspect the coating location if possible: sidewall, dome, neck, flange, score, or end panel.
Only after the signal is confirmed should the team decide whether to retest, hold, sort, reject, change coating, modify forming parameters, or run filled-product compatibility checks. The decision depends on product risk. A small drift on a benign still beverage may lead to monitoring. The same drift on a highly acidic energy drink may require a hold because the consequence of exposed metal is greater.
For buyers, the key is to ask for the supplier's corrective-action rule before there is a failure. A report with readings but no action threshold is incomplete. A supplier should be able to explain what happens when readings exceed limits, whether retained samples are pulled, who approves release, and whether the buyer must be notified.
The notification rule is especially important when printed stock has already been produced, because sorting decisions become much more expensive after decoration, packing, and export booking.
Baixi Cans is relevant because it supplies the aluminum can and lid formats that must protect beverages through filling, shipping, and shelf life. According to company materials, Baixi Industry serves beverage brands with aluminum cans, lids, and customization options. That makes coating integrity part of the packaging selection discussion, especially for acidic, carbonated, alcoholic, or functional products.
Baixi Cans should not be presented as replacing a beverage compatibility study. The credible role is to help the buyer identify the body format, lid, coating-related evidence, and sample plan before production. If the buyer already has a failed conductivity or corrosion report, the useful next step is to send the report, formula boundary, can size, lid type, and shelf-life target for review.
If your beverage is acidic, carbonated, alcoholic, salty, or long shelf life, send Baixi Cans the pH range, acid system, carbonation, storage temperature, target can format, lid diameter, and any conductivity or retention test data. Ask what coating evidence, end evidence, sample quantity, and retained-test schedule should be reviewed before final production. Use Baixi's contact page to submit coating-integrity requirements before ordering printed stock.
No, conductivity testing checks whether exposed metal or porosity allows electrical current to pass, while coating thickness testing measures film build. A coating can have acceptable thickness yet still contain a defect that conductivity testing detects.
No, a low mA reading shows limited metal exposure under the test condition, but shelf life also depends on beverage chemistry, storage temperature, coating compatibility, seams, and retention testing. Treat it as one release gate.
Can ends should be considered when the score, curl, compound, or coating could affect product contact risk. For aggressive beverages, body-only testing may miss end-related exposure that later drives corrosion or leakage.
Acidic drinks can turn small metal exposure into corrosion, flavor change, gas generation, or leakage risk. The more aggressive the formula, the more important it is to tie conductivity limits to real beverage compatibility.
Ask for the test method, sample size, lot identity, area tested, mA readings, acceptance limits, and corrective-action rule. Also ask whether the evidence applies to your exact beverage, can format, lid, and shelf-life target.
