How to Prevent Rust on the Outside of Food Packaging Cans

External rust is usually not a can-making verdict. It is evidence that a water path—the route by which water reaches and remains against an exterior surface—met a vulnerable steel area somewhere between cooling, storage, and delivery. Prevention therefore starts with the material, the exact location, the moisture event, and the condition of the exterior barrier. A brown mark alone cannot settle all four questions.
Jun 11th,2025 2163 Views

External rust is usually not a can-making verdict. It is evidence that a water path—the route by which water reaches and remains against an exterior surface—met a vulnerable steel area somewhere between cooling, storage, and delivery. Prevention therefore starts with the material, the exact location, the moisture event, and the condition of the exterior barrier. A brown mark alone cannot settle all four questions.

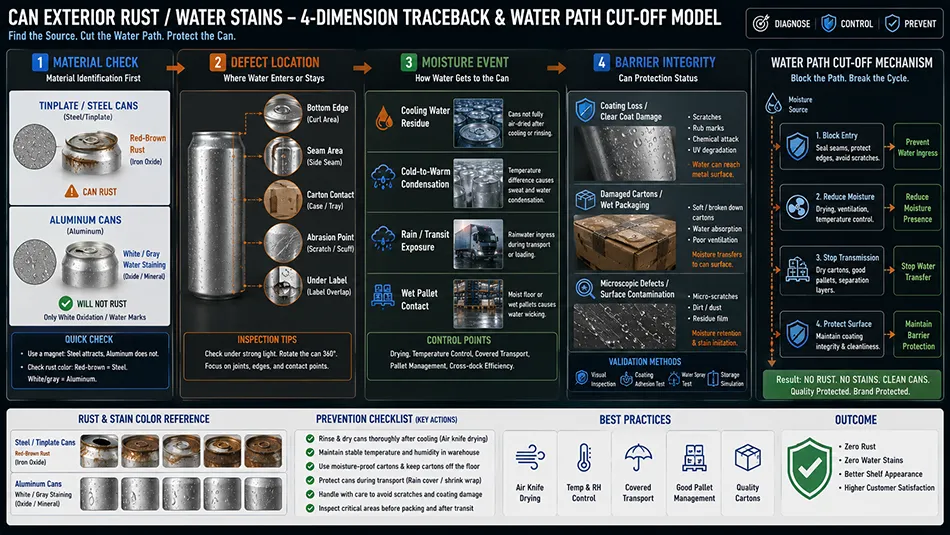

A 4-dimension defect inspection diagram tracing can material, moisture location, environmental exposure, and exterior coating barrier

Prevent Rust by Breaking the Water Path

External rust prevention begins by tracing the moisture route and the vulnerable exterior surface. Red-brown rust needs more than a wet building or a scratched can: moisture must reach susceptible iron or steel and remain at a place where the outside protection no longer keeps it apart from the metal. That is why a practical investigation asks four connected questions: What is the can made of? Where is the mark? When could water have reached it? What protected, or failed to protect, that area?

  • Material: confirm whether the affected package is steel-based, tinplate, or aluminum before naming the condition.
  • Location: record whether the mark sits on the body, bottom edge, seam area, under a label, or next to visible abrasion.
  • Moisture event: look for cooling water, condensation, wet cases, floor contact, rain exposure, or a cold-to-warm transfer.
  • Barrier: examine coating loss, trapped moisture, damaged cartons, and the protection used in storage or transit.

This order matters because a dry warehouse statement answers only part of the problem. A transfer may have created condensation before the pallet reached the warehouse, while a small coating break can make one location more exposed than the rest of the can. Correct the documented water route and barrier weakness, then check the next comparable movement or storage event. That is a prevention rule, not a universal release limit.

Three-part diagram shows a water route, a central rust-risk zone where moisture meets vulnerable steel, and a protective-barrier and verification path.

Confirm the Can Material Before Calling It Rust

The Aluminum Association notes that aluminum does not rust as steel does, although moisture can produce staining. Its water-staining guidance helps separate that material behavior from red-brown steel rust. In food packaging, tinplate means steel sheet protected by a thin layer of tin, so exterior damage or prolonged dampness can leave susceptible steel exposed. The distinction changes the prevention request because aluminum staining, steel rust, and a coating defect should not be assigned the same cause by appearance alone.

For beverage formats, the useful next question is not whether an aluminum can will form red rust. It is whether the specified body, exterior finish, end, packing method, and handling route fit the intended use. Once that material boundary is clear, buyers can compare aluminum can formats after identifying the material and corrosion mechanism without carrying a steel-can corrosion label into the wrong product discussion. Baixi Cans can use the documented format and exposure context to make that comparison more specific; it does not replace the responsible team that evaluates the finished food package.

Control Moisture After Cooling and During Temperature Changes

CFIA lists wet cans after cooling, unsuitable warehouse conditions, and weather exposure as external-corrosion sources. The agency also identifies dampness as the most common setting for that problem. This matters because the most effective controls remove water before it can persist on the exterior, using a sequence of real checks rather than a blanket instruction to keep cans dry.

After water cooling, look at whether cans are being dried and drained before they are packed or accumulated. During warehousing, look beyond room conditions to wet floor contact, damaged outer cases, blocked airflow, and pallet positions that can retain moisture. During transit, check the load's protection from rain, splash, or wet loading equipment. The control owner may differ at each point, but the record should identify the same can or case group, the time of the exposure, and the condition observed afterward.

Treat Condensation as a Transition Risk

USDA transport guidance links condensation after a cold-to-warm transition with rust spots on tin cans. The cited transport manual therefore makes the transition a distinct check: water forms on a surface as a colder item enters warmer air, even when the warehouse itself is dry. The manual discusses a 50°F (10°C) warm-up point before unloading in its transport context; it should not be copied as a universal specification for every facility or can system.

Instead, treat a temperature transition as an event to manage. Record when the load left the cold zone, whether surfaces or cartons were visibly damp, how long the transfer took, and when the cases were put into dry storage. A clear event record lets a team test the prevention step on the next similar transfer rather than arguing later about a generic description of the warehouse.

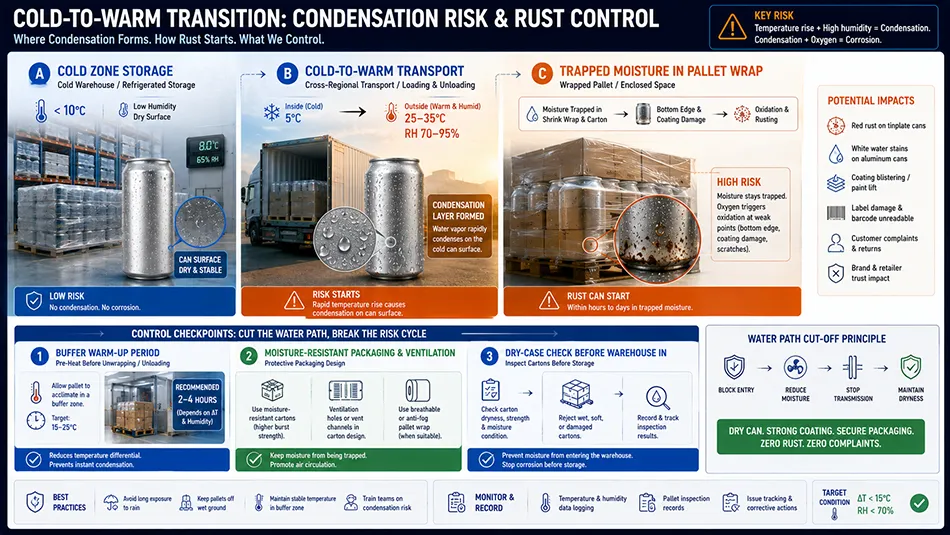

An infographic illustrating moisture condensation mechanics during cold-to-warm warehouse transition and pallet protection checks

Protect Coatings, Seams, and Other Vulnerable Areas

CFIA states that damaged external coating exposes bare metal susceptible to corrosion. That exterior-corrosion guidance explains why water exposure does not affect every location in the same way. An exterior protective coating is the outside layer that separates moisture from underlying metal. If it is scraped, worn, or damaged during handling, a moisture event that leaves surrounding cans unchanged may still produce a localized rust spot.

Inspect the affected location before making a broad conclusion. Bottom edges can pick up water from a wet surface. Label edges can hold moisture against the body. Abraded points may reveal the protective layer has been removed. Seam or end-adjacent marks need careful wording: an external mark near a seam does not by itself establish an internal corrosion or closure conclusion. It does, however, justify recording the exact end condition, contact history, and any visible damage.

That record is also the useful bridge to a component conversation. Buyers who have identified an end-area condition can review aluminum can lid options with a recorded end condition and handling history instead of asking a supplier to diagnose a photograph. The relevant brief names the end format, can material, location of the mark, moisture exposure, and the remaining question.

Make Warehouse and Transport Protection Visible

FDA guidance says cooling water should be controlled to allow proper drying and avoid possible can rusting. In its low-acid canned-food inspection context, the practical takeaway is not a fixed setting for every operation. It is to confirm that drying actually occurs before cases, pallet wrap, or a staging position turn residual water into trapped moisture.

Use the movement path as the control map. Check whether cases are dry before wrapping; keep pallets off wet floors; protect loading and temporary staging from weather; and inspect cartons after a cold-to-warm move. The same observation should travel with the pallet or lot identity. “Warehouse dry” is useful background, but it is weaker than a dated note showing dry cases, protected loading, and no visible condensation at the handoff.

When Rust Appears, Preserve the Condition Before You Assign Cause

FDA's external examination of metal containers includes leakage, pinholes, rusting, dents, and seam observations. Its metal-container method places those checks before product examination. For a buyer, that supports a simple discipline: photograph the condition in place, identify the material and pallet or case group, note the exact location, and retain the related storage or transport record.

Those observations can narrow the first corrective question. A damp lower carton and bottom-edge marks point toward a different check from dry cartons with abrasion at a contact point. They do not, by themselves, decide product safety, market eligibility, or final disposition. Those decisions remain with the responsible quality and product system under the applicable requirements.

Illustrative Scenario: When a Dry Log Conflicts With a Wet Arrival

Conflicting physical and document evidence should lead to a conditional prevention response. The following is illustrative, not a Baixi Cans case study.

A food-packaging buyer receives a steel-based canned-food delivery after a cross-dock transfer and notices exterior red-brown marks while checking the incoming cases.

The illustrative order covers 1,200 cases staged across two loading bays. Fourteen cases from one receiving pallet group are the affected scope, so the buyer can keep the evidence tied to a defined group instead of treating the whole delivery as one undifferentiated condition.

The receiving log says the cases were dry. However, the condition review remains open because the physical evidence has not been matched to a time-stamped transfer record.

The 14 cases show localized marks near a wrinkled moisture trace and a softened outer-label area. Their lower carton corners are visibly wet in receiving photographs.

The same photographs show condensation marks, while the dry log does not record when the pallet moved from a colder area into warmer air. The two records do not prove a cause, but they cannot be treated as if they agree.

The buyer compares the physical condition, pallet identity, and missing transition detail before deciding what to correct. In its visual-examination context, CFIA says wet or water-damaged cases should be segregated from the lot. Here, that supports preserving the condition and scope; it does not turn the illustration into a sale, safety, or release decision.

The response is conditional: preserve the photos and pallet identity, investigate the cold-to-warm transfer and case protection, and let the responsible quality system determine any final product disposition.

The team revises the transfer record to capture temperature-transition conditions, protects cases from wet surfaces, and adds a case-dryness check before warehouse placement.

At the next comparable transfer, the buyer reviews the moisture record and physical case condition together. If the cases are dry and the transition is documented, the prevention action has evidence behind it; if not, the water-path question stays open.

This illustrative example does not establish a universal defect threshold, prove a root cause, or determine food safety. It shows how a buyer can avoid letting a dry document outweigh a conflicting physical condition.

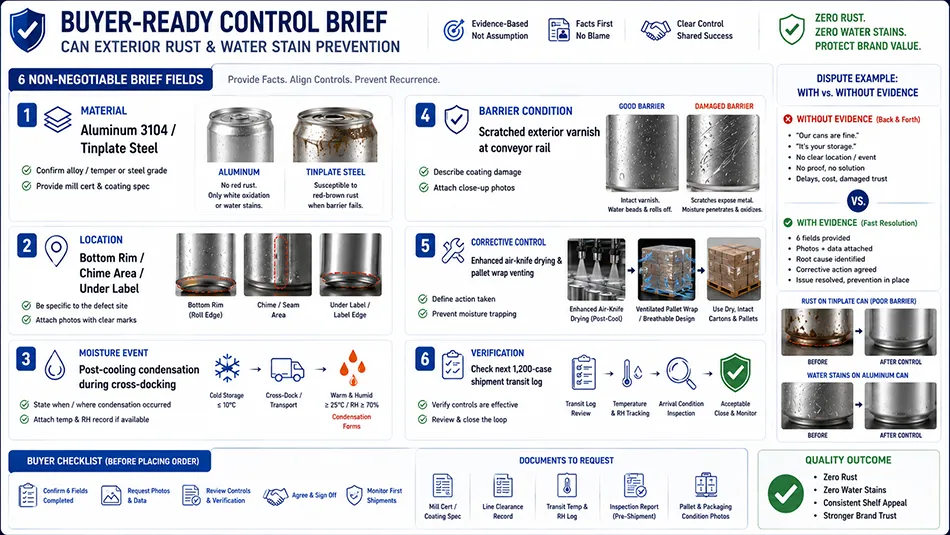

A 6-field buyer-ready control brief panel for investigating and preventing external rust or water staining on packaging cans

Turn Prevention Into a Buyer-Ready Control Brief

A six-field prevention brief makes the next moisture-control request specific and verifiable. It is most useful when the buyer needs a can, end, packaging, warehouse, or logistics partner to discuss a real condition without pretending that one party can make every product decision from a photo.

Record field What to name Why it changes the next check
Material Steel-based can, tinplate, or aluminum Prevents steel rust and aluminum staining from being treated as one issue.
Location Body, bottom edge, label area, seam area, or abrasion Shows where moisture may have persisted or coating may be weak.
Moisture event Cooling, condensation, wet case, storage, or transit exposure Names the water path to control.
Barrier condition Coating, label, carton, wrap, and contact-surface condition Identifies the protection that needs review.
Corrective control Drying, weather protection, transfer handling, or case-dryness check Makes the requested action observable.
Verification Next comparable transfer or storage event Confirms whether the correction changed the condition.

For an aluminum beverage-format discussion, send that brief with the format and end requirement rather than with a generic rust label. Baixi Cans can use those inputs to discuss the relevant can format, while the buyer's quality team retains responsibility for the finished package decision. When the information is ready, review 250ml slim can options with a defined moisture-control brief.

Frequently Asked Questions

Residual questions follow the article's material, moisture, and evidence boundaries. Identify what the can is made of, locate the mark, connect it to a real exposure event, and avoid turning an exterior observation into an unsupported disposition decision.

Can aluminum food cans rust on the outside?

Aluminum does not form the red-brown rust associated with steel, although wet aluminum can develop staining or other corrosion-related surface changes. Confirm the package material before using rust terminology, especially when a food-can observation is being compared with an aluminum beverage-can specification. A surface mark on aluminum may still need review, but the material, coating, storage condition, and appearance should be described accurately.

Where does external can rust usually start?

External rust commonly starts where dampness persists and the protective exterior barrier is weakened, such as exposed coating damage, bottom edges, seam-adjacent areas, label edges, or trapped moisture locations. The location does not prove the cause by itself. Pair it with the can material, carton condition, handling history, and the likely moisture event before choosing a corrective action.

Does condensation during transport cause can rust?

Yes, a cold-to-warm transition can create condensation on can surfaces, so transport planning should control that moisture event rather than rely only on a general dry-warehouse statement. Record when the load changed environments, whether cartons or surfaces were damp, and how cases were protected before storage. The source-specific transport guidance is a useful mechanism, not a universal temperature rule.

What records help investigate exterior can rust?

Keep photos of the affected area, material identification, pallet or case identity, exposure timing, warehouse or transit conditions, and the exterior-coating observation together. Add the corrective control selected and the next comparable event to verify it. This record makes it easier to distinguish a one-off appearance issue from a recurring water-path or barrier-control problem without overstating what the evidence proves.
